Terrasat's IBUC 2 series offers a range of Ku-Band Block Upconverters (BUCs) designed to meet diverse satellite communication needs. Below is an overview of selected models, highlighting their key features and specifications.
Product Overview

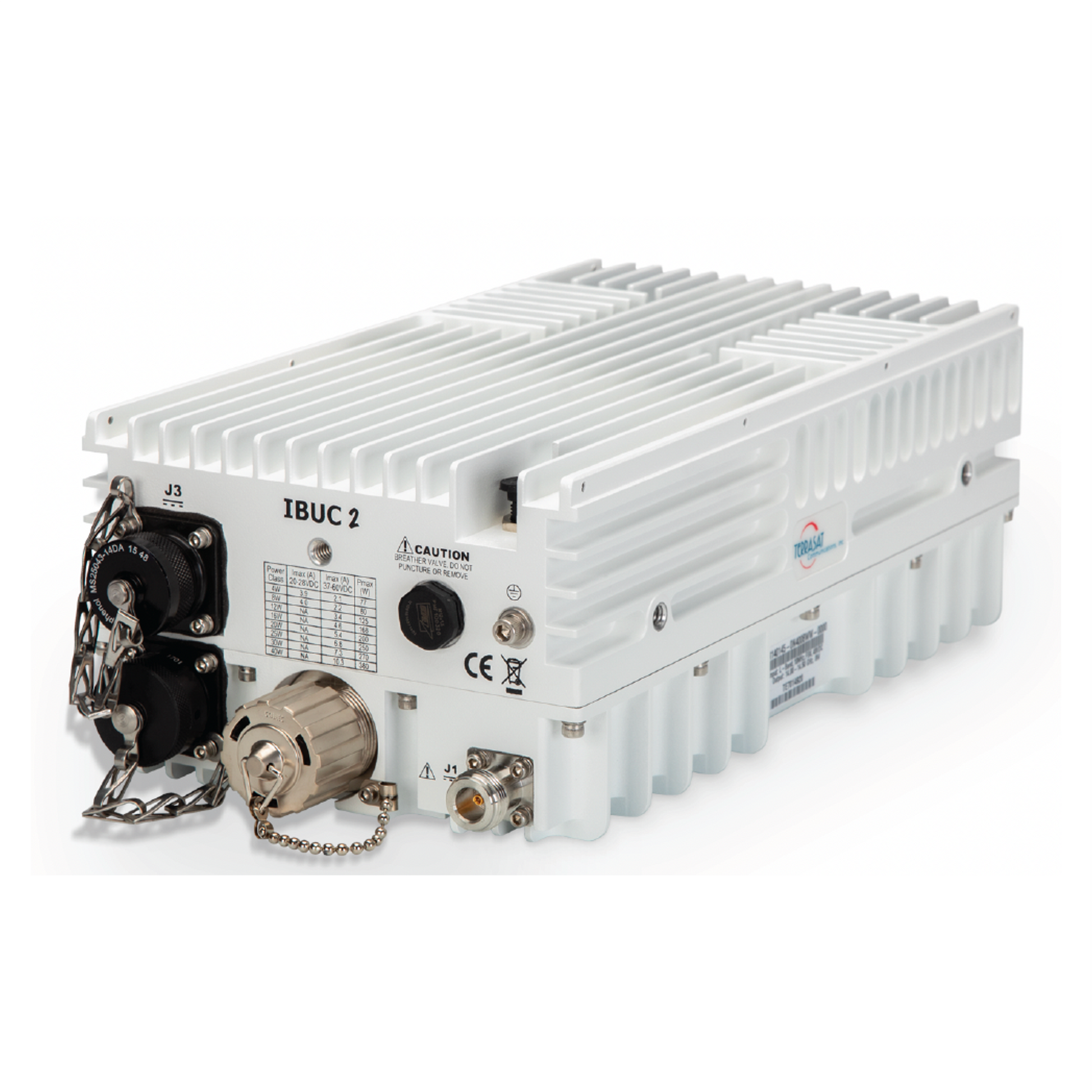

Terrasat's IBUC 2 series integrates a Block Upconverter with a Solid State Power Amplifier (SSPA) in a compact, weatherproof package. These units are known for their high performance, reliability, and advanced management capabilities, making them suitable for various applications, including VSAT networks, broadcast, and military communications.
Key Features
-
High-Quality Performance: Each unit undergoes individual testing over temperature to ensure superior linearity and maximum usable output power.
-
Advanced Management and Control:
- Local web interface and NMS-friendly SNMP support.
- Over 70 user-configurable thresholds and alarms.
- Upgraded event log with 1,000 sensor readings.
- Performance trend analysis tools and statistical logs.
- Embedded web pages for universal web browser access.
-
Robust Construction: Designed to withstand harsh environmental conditions with a weatherized RJ45 Ethernet interface for simplified connection.
-
Flexible Configuration Options:
- Available in Low, Standard, or Full Ku-Band frequencies.
- Options for AC or DC power input models.
- Selectable Automatic Gain Control (AGC) or Automatic Level Control (ALC) for improved space segment management.
Product Specifications
Below is a comparison of selected Terrasat IBUC 2 Ku-Band Block Upconverters:
| Model | Frequency Bands | Output Power | Power Supply Options | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|---|
| IBUC 2 Ku-Band 25W | Low: 12.75-13.25 GHz Standard: 14.0-14.5 GHz Full: 13.75-14.5 GHz |
25W | AC or DC | 11.2" x 5.4" x 5.0" | 10.5 lbs |
| IBUC 2 Ku-Band 40W | Low: 12.75-13.25 GHz Standard: 14.0-14.5 GHz Full: 13.75-14.5 GHz |
40W | AC or DC | 11.2" x 5.4" x 5.0" | 10.5 lbs |
| IBUC 2 Ku-Band 50W | Low: 12.75-13.25 GHz Standard: 14.0-14.5 GHz Full: 13.75-14.5 GHz |
50W | AC or DC | 11.2" x 5.4" x 5.0" | 10.5 lbs |
| IBUC 2G Ku-Band 60W | Low: 12.75-13.25 GHz Standard: 14.0-14.5 GHz Full: 13.75-14.5 GHz |
60W | AC or DC | 12.4" x 5.4" x 5.0" | 12.0 lbs |
| IBUC 2G Ku-Band 80W | Low: 12.75-13.25 GHz Standard: 14.0-14.5 GHz Full: 13.75-14.5 GHz |
80W | AC or DC | 12.4" x 5.4" x 5.0" | 12.0 lbs |
| IBUC R Ku-Band 200W | Low: 12.75-13.25 GHz Standard: 14.0-14.5 GHz Full: 13.75-14.5 GHz |
200W | AC or DC | 19.5" x 8.5" x 8.0" | 40.0 lbs |
| IBUC G Ku-Band 200W | Low: 12.75-13.25 GHz Standard: 14.0-14.5 GHz Full: 13.75-14.5 GHz |
200W | AC or DC | 19.5" x 8.5" x 8.0" | 40.0 lbs |
Applications
Terrasat's IBUC 2 series is suitable for a variety of applications:
-
VSAT Networks: Provides reliable uplink capabilities for small to medium-sized satellite communication networks.
-
Broadcast: Ensures high-quality signal transmission for television and radio broadcasting.
-
Military Communications: Offers secure and robust communication links for defense applications.
-
Emergency Response: Delivers dependable connectivity in disaster recovery and emergency situations.
Ordering Information
For more details or to request a quote, please visit the respective product pages linked in the table above. Each product page provides comprehensive information and options to contact sales representatives for personalized assistance.
Terrasat's IBUC 2 Ku-Band Block Upconverters are engineered to deliver exceptional performance and reliability, making them a preferred choice for professionals in the satellite communication industry.
