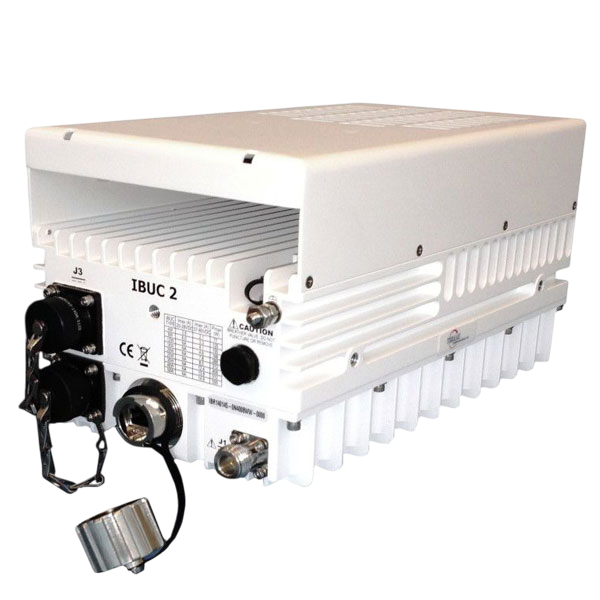

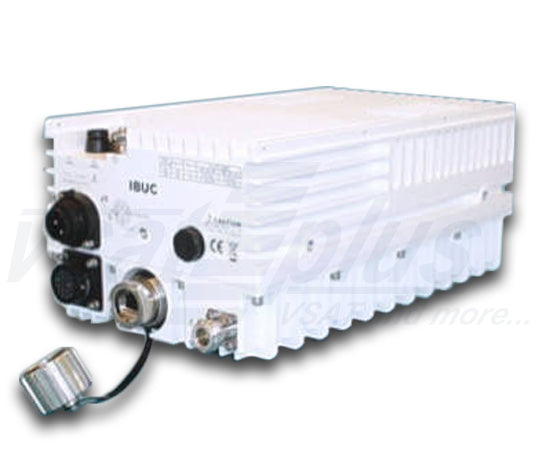

Terrasat IBUC 2 Ku-band 4W Low Block Upconverter
Terrasat IBUC 2 Ku-band 4W Low Block Upconverter
Couldn't load pickup availability
Terrasat IBUC 2 Ku-band 4W Low Block Upconverter
Overview
The latest evolution of the IBUC has all of the advanced features and reliability of the original IBUC in a new, more compact package.
IBUC 2 offers significant benefits:
- High performance in a compact, cost effective package
- Simple design and installation
- Simplified 1+1 configuration
New interfaces connect you to extensive M&C facilities for network management or local access. This powerful M&C enables:
- Trouble-free commissioning with easy, point-and-click installation/configuration
- Continuous verification of performance with time-stamped alarm history
- Simplified monitoring of terminal status
The IBUC 2 comes with a complete set of diagnostic tools including:
- 10 MHz input detector
- Input voltage and current monitoring
- Transmit L-band input level detector
- Transmit RF output level detector
- User configurable thresholds and alarms
Unique to the IBUC are internal AGC and ALC functions that satisfy demanding applications with stringent specifications.
IBUC Advantages
Integrated BUC/SSPA for higher performance and reliability. High linearity. DC power can be supplied via IFL coax or separate DC connector for 4 W through 16 W models.
All models available with integral AC power supply or separate DC power supply. Internal 10MHz reference option automatically switches to internal reference when external reference is not detected. Low phase noise better than IESS308/309 requirements by a minimum of 5 dB. Embedded Web pages provide management for small networks using any Web browser.
AGC or ALC circuits hold gain or output level constant. 30 dB User-adjustable gain in 0.1 dB steps preserves modem dynamic range.
Advanced user interfaces
- TCP/IP HTTP with embedded Web pages via RJ-45 connector.
- SNMP
- TELNET through TCP/IP
- FSK through TX IFL cable
- RS232/485 serial port
- Hand-held terminal
| IBUC 2 Ku-Band Intelligent Block Upconverter |
|
|---|---|
| Frequency range | |
| Band 1 RF IF |
Std Ku 14.00 to 14.50 GHz 950 to 1450 MHz |
| Band 2 RF IF |
Full Ku 13.75 to 14.50 GHz 950 to 1700 MHz |
| Band 3 RF IF |
Low Ku 12.75 to 13.25 GHz 950 to 1450 MHz |
| Input | |
| VSWR / Impedance | 1.5:1 max / 50 Ohm |
| Input Connector | Type N female (50 Ohm) |
| Input Connector options | Type F (75 Ohm), TNC (50 Ohm) |
| Input power detector | -55 to –20 dBm |
| Gain | |
| Small Signal Gain (L-band to RF) with attenuator set to 0 dB | |
| 4 W | 67 dB min |
| 8 W | 70 dB min |
| 12 W | 72 dB min |
| 16 W | 73 dB min |
| 20 W | 74 dB min |
| 25 W | 75 dB min |
| 30 W | 76 dB min |
| 40 W | 77 dB min |
| 50 W | 78 dB min |
| Attenuator range | 30 dB variable in 0.1 dB steps |
| Gain flatness | |
| Full band Band 1 & 3 Band 2 |
3 dB p-p max 4 dB p-p max |
| 36 MHz Band 1 & 3 Band 2 |
1 dB p-p max 1.5 dB p-p max |
| 1 MHz Band 1 & 3 Band 2 |
0.25 dB p-p 0.25 dB p-p |
| Gain variation over temperature | |
| Open loop | 3 dB p-p max |
| With AGC | 1 dB p-p max |
| RF Output | |
| Interface | WR75 cover with groove |
| VSWR | 1.5:1 max |
| Rated output power | |
| 4 W P1dB Plinear |
+36 dBm min 34.5 dBm |
| 8 W P1dB Plinear |
+39 dBm min 37.5 dBm |
| 12 W P1dB Plinear |
+40.8 dBm min 39.3 dBm |
| 16 W P1dB Plinear |
+42 dBm min 40.5 dBm |
| 20 W P1dB Plinear |
+43 dBm min 41.5 dBm |
| 25 W P1dB Plinear |
+44 dBm min 42.5 dBm |
| 30 W P1dB Plinear |
+44.8 dBm min 43.3 dBm |
| 40 W P1dB Plinear |
+46 dBm min 44.5 dBm |
| 50 W P1dB Plinear |
+47 dBm min 45.5 dBm |
| Plinear is the maximum linear power as defined by MIL-STD-188-164B. | |
| IMD3 (2 carriers, 3 dB TOBO) | -25 dBc max |
| Level stability with ALC | ±0.5 dB |
| Output power detector range | Rated power to –20 dB |
| Power reading accuracy | ±1.0 dB max |
| Spurious In Band Out of Band |
-65 dBc Complies with EN 301 428/430 and MIL-STD 188-164B |
| Harmonics | -50 dBc max |
| Output Noise Power Density | TX < -78 dBm/Hz RX < -145 dBm/Hz |
| SSB Phase Noise | |
| 10 External ref IBUC |
-115 dBc/ -50 dBc/ |
| 100 External ref IBUC |
-140 dBc/ -75 dBc/ |
| 1 k External ref IBUC |
-150 dBc/ -85 dBc/ |
| 10 k External ref IBUC |
-155 dBc/ -90 dBc/ |
| 100 k External ref IBUC |
n/a -95 dBc/ |
| 1 M External ref IBUC |
n/a -110 dBc/ |
| External Reference (multiplexed on TX I FL) | |
| Frequency | 10 MHz |
| Level | -12 to +5 dBm |
| Internal Reference - optional | |
| Local Oscillator Frequency | |
| Sense | Non-Inverting |
| Band 1 | 13050 MHz |
| Band 2 | 12800 MHz |
| Band 3 | 11800 MHz |
| IBUC Power Supply | |
| Voltage DC AC |
48 ± 11 VDC 100 to 240 VAC |
| Option for 4 W, 8 W | 24 ± 4 VDC |
| DC via coax available on | 4 W - 16 W |
| Power Consumption | |
| 4 W DC AC |
77 W 85 VA |
| 8 W DC AC |
80 W 115 VA |
| 12 W DC AC |
125 W 158 VA |
| 16 W DC AC |
168 W 200 VA |
| 20 W DC AC |
200 W 225 VA |
| 25 W DC AC |
250 W 270 VA |
| 30 W DC AC |
270 W 300 VA |
| 40 W DC AC |
380 W 420 VA |
| 50 W DC AC |
N/A 460 VA |
| Monitor and Control | |
| Ethernet (HTTP , Telnet, SNMP ) | via RJ -45 connector, |
| RS232/485, Hand-held Terminal | via MS-type connector, |
| FSK | multiplexed on TX I FL. |
| Environmental | |
| Operating temperature | |
| 4W - 25W | -40oC to +60oC |
| 30W - 50W | -40oC to +55oC |
| Relative humidity | 100% condensing |
| Altitude | 10,000 ft., (3,000 m) ASL |
| Mechanical | |
| 4 W - 8 W DC powered AC powered |
10.5 x 6 x 3.8 in., 9.3 lbs 10.5 x 6 x 4.2 in., 10.5 lbs |
| 12 W - 20 W w/fan DC powered AC powered |
10.5 x 6 x 5.2 in.,10.9 lbs 10.5 x 6 x 5.6 in., 11.9 lbs |
| 25 W - 50 W w/fan DC powered AC powered |
10.5 x 6 x 5.7 in., 12.3 lbs 10.5 x 6 x 6.1 in., 13.5 lbs |
| 40W, 50W dimensions do not include isolator | |
