Terrasat Communication

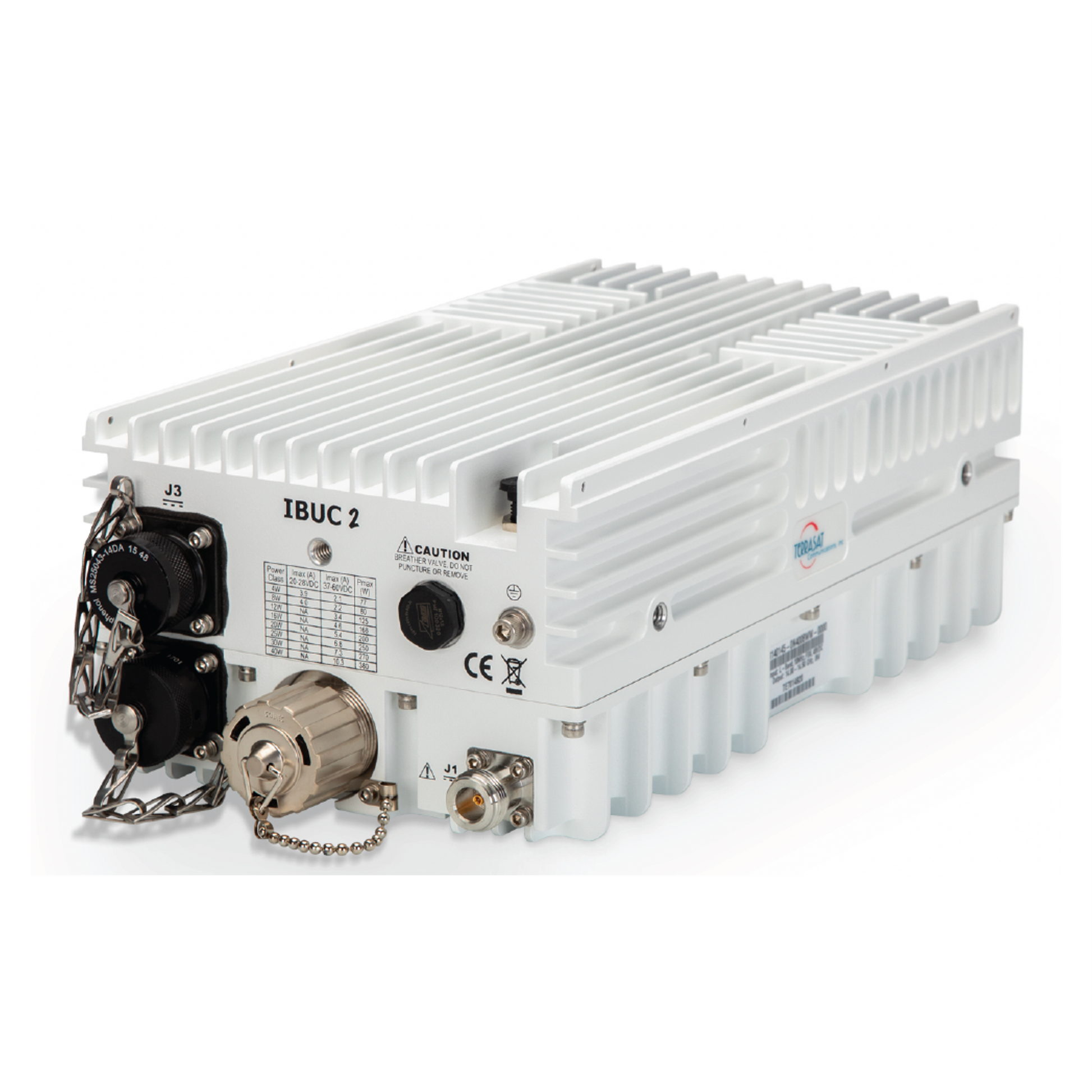

Terrasat IBUC 2 C-band series

Terrasat IBUC 2 C-band series

Terrasat IBUC 2 C-band series
Request for a quote

Terrasat's IBUC 2 series offers a comprehensive range of C-Band Block Upconverters (BUCs) designed to meet diverse satellite communication requirements. These units integrate a Block Upconverter with a Solid State Power Amplifier (SSPA) in a compact, weatherproof package, ensuring high performance and reliability across various applications.

Key Features

  • High-Quality Performance: Each unit undergoes individual testing over temperature to ensure superior linearity and maximum usable output power.

  • Advanced Management and Control:

    • Local web interface and NMS-friendly SNMP support.
    • Over 70 user-configurable thresholds and alarms.
    • Upgraded event log with 1,000 sensor readings.
    • Performance trend analysis tools and statistical logs.
    • Embedded web pages for universal web browser access.

  • Robust Construction: Designed to withstand harsh environmental conditions with a weatherized RJ45 Ethernet interface for simplified connection.

  • Flexible Configuration Options:

    • Available in Standard, Extended, or Full C-Band frequencies.
    • Options for AC or DC power input models.
    • Selectable Automatic Gain Control (AGC) or Automatic Level Control (ALC) for improved space segment management.

Product Specifications

Below is a comparison of selected Terrasat IBUC 2 C-Band Block Upconverters:

Model Frequency Bands Output Power Power Supply Options Dimensions (L x W x H) Weight
IBUC 2 C-Band 20W Standard: 5.85-6.425 GHz
Extended: 5.85-6.65 GHz
Full: 5.85-6.725 GHz		 20W AC or DC 11.2" x 5.4" x 5.0" 10.5 lbs
IBUC 2 C-Band 25W Standard: 5.85-6.425 GHz
Extended: 5.85-6.65 GHz
Full: 5.85-6.725 GHz		 25W AC or DC 11.2" x 5.4" x 5.0" 10.5 lbs
IBUC 2 C-Band 40W Standard: 5.85-6.425 GHz
Extended: 5.85-6.65 GHz
Full: 5.85-6.725 GHz		 40W AC or DC 11.2" x 5.4" x 5.0" 10.5 lbs
IBUC 2 C-Band 50W Standard: 5.85-6.425 GHz
Extended: 5.85-6.65 GHz
Full: 5.85-6.725 GHz		 50W AC or DC 11.2" x 5.4" x 5.0" 10.5 lbs
IBUC 2 C-Band 60W Standard: 5.85-6.425 GHz
Extended: 5.85-6.65 GHz
Full: 5.85-6.725 GHz		 60W AC or DC 11.2" x 5.4" x 5.0" 10.5 lbs
IBUC 2 C-Band 80W Standard: 5.85-6.425 GHz
Extended: 5.85-6.65 GHz
Full: 5.85-6.725 GHz		 80W AC or DC 11.2" x 5.4" x 5.0" 10.5 lbs
IBUC 2G C-Band 100W Standard: 5.85-6.425 GHz
Extended: 5.85-6.65 GHz
Full: 5.85-6.725 GHz		 100W AC 12.4" x 5.4" x 5.0" 12.0 lbs
IBUC R C-Band 150W Standard: 5.85-6.425 GHz
Extended: 5.85-6.65 GHz
Full: 5.85-6.725 GHz		 150W AC or DC 19.5" x 8.5" x 8.0" 40.0 lbs
IBUC R C-Band 200W Standard: 5.85-6.425 GHz
Extended: 5.85-6.65 GHz
Full: 5.85-6.725 GHz		 200W AC or DC 19.5" x 8.5" x 8.0" 40.0 lbs
IBUC R C-Band 400W Standard: 5.85-6.425 GHz
Extended: 5.85-6.65 GHz
Full: 5.85-6.725 GHz		 400W AC 19.5" x 8.5" x 8.0" 40.
