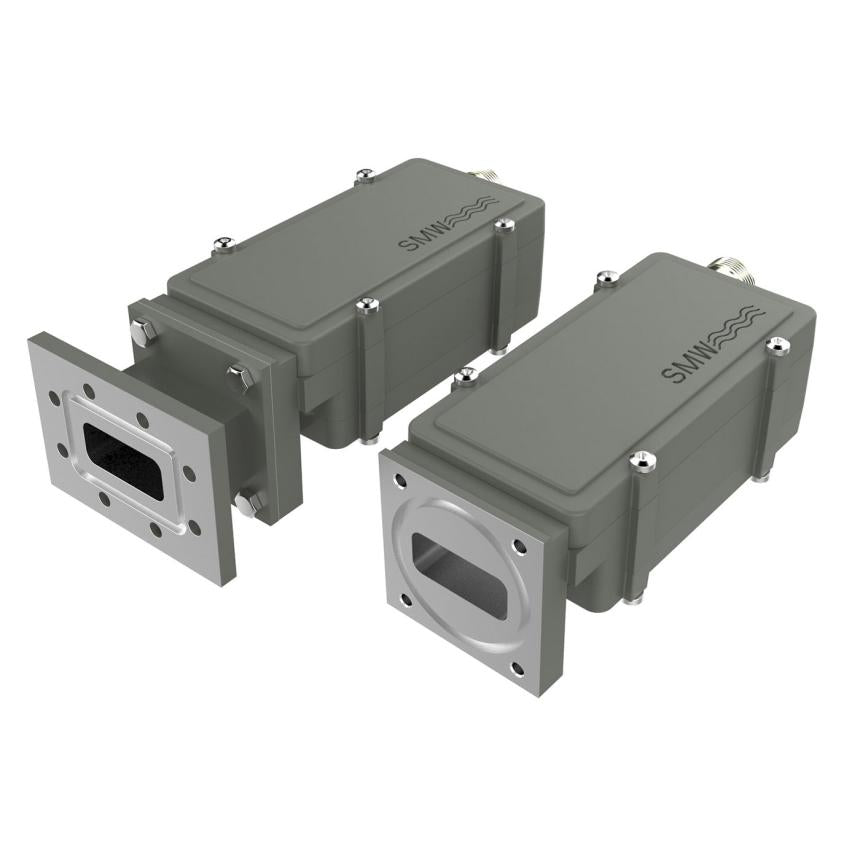

SMW Ku LNB 12.70-15.50 GHz 1-4 Band

The SMW Ku-Band LNB 12.70-15.50 GHz 1-4 Band Uplink Monitoring from Swedish Microwave is a versatile, high-performance LNB designed for precise satellite signal monitoring across multiple Ku-band sub-bands. Engineered to support up to 8 switchable sub-bands, this device provides comprehensive flexibility for users needing high-quality signal reception in various frequency ranges. The LNB is ideal for applications where consistent, reliable satellite uplink monitoring is essential.

This Ku-Band LNB features autoswitching between external and internal 10 MHz references, ensuring dependable performance in varying conditions. With options for customized LO frequencies, gain, and monitoring interfaces, the SMW Ku-Band LNB is highly adaptable to diverse operational requirements. Its rugged construction and exceptional phase noise performance make it suitable for demanding environments, such as maritime and remote installations.

Key Features

• Multiband Flexibility: Supports up to 8 selectable sub-bands within the 12.70–15.50 GHz frequency range.

• Autoswitching Reference: Automatically switches between external and internal 10 MHz references to maintain signal stability.

• Exceptional Phase Noise: Low phase noise ensures compliance with DVB-S2X standards for precise signal reception.

• Advanced Monitoring & Control: Integrated MODBUS RTU RS485 interface enables remote monitoring and control for added operational efficiency.

• Wide Temperature Range: Operates effectively from -40°C to +80°C, making it suitable for diverse environmental conditions.

Specifications

• Frequency Range: 12.70 - 15.50 GHz (configurable by model)

• Gain: Programmable up to 55 dB

• Phase Noise: -118 dBc/Hz at 1 MHz offset

• IF Output: Standard range of 950-2450 MHz, with customization available

• Power Supply: +11 to +26 V DC via output or optional SMA connector

• Environmental Protection: Rated for dust and water resistance with an IP54 rating

Optional Accessories

• Alarm & Monitoring Interface: Allows for detailed status monitoring and alarm functionalities.

• Custom Configurations: Options for tailored LO frequencies, gain adjustments, and additional connectivity features.

Additional Information

The SMW Ku-Band LNB 12.70-15.50 GHz is an ideal solution for satellite uplink monitoring, delivering reliable, high-quality performance across multiple sub-bands. With options for customization, this LNB is designed to meet the requirements of demanding commercial and professional satellite applications.
