Skyware Global Antenna 2.4m Tx/Rx C-Band Linear Type 243 Class III
Skyware Global Antenna 2.4m Tx/Rx C-Band Linear Type 243 Class III
SKU: SKYW-243C-LIN
Couldn't load pickup availability
Skyware Global Antenna 2.4m Tx/Rx C-Band LinearType 243 Class III Antenna

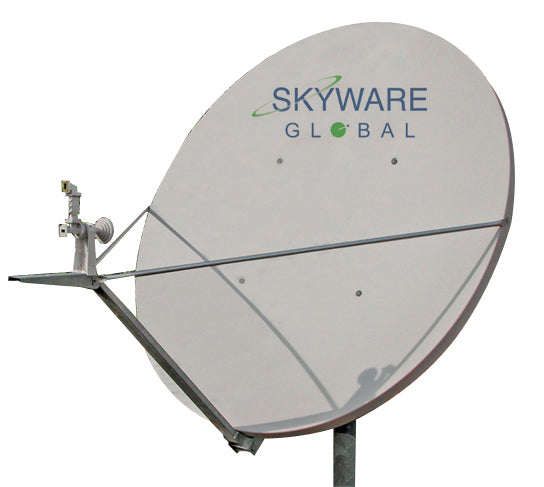

The Skyware Global Antenna 2.4m Tx/Rx C-Band Linear Type 243 Class III Antenna is a rugged commercial grade product suitable for the most demanding applications. The two piece reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of each reflector half is a network of support ribs which not only strengthens the antenna, but also helps to sustain the critical parabolic shape necessary for transmit performance.
The Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector and feed support arm. Heavy-duty lockdown bolts secure the mount to any 6.63" (168 mm) O.D. mast to prevent slippage in high winds. Hot-dip galvanizing is standard for maximum environmental protection.
Features
- Two-piece precision offset thermoset molded reflector
- Fine Azimuth and elevation adjustments
- Galvanized feed support arm and alignment struts
- Factory pre-assembled mount
- Galvanized and stainless hardware for maximum corrosion resistance
- RF tested feed assembly
- Heavy-duty Class III mount for 25 lb (11 kg) RF electronics (LNB & BUC)
| General Specifications | |
|---|---|
| Frequency Range | 5.850 - 6.725 GHz |
| Gain (3 dBi) | 42.0 dBi @ 6.13 GHz |
| Feed Interface | Type N or CPR 137 |
| Electrical Specifications | |
| Effective Aperture | 2.4m (96 in.) |
| Operating Frequency | Transmit = 5.850 - 6.725 GHz Receive = 3.400 - 4.200 GHz |
| Polarization | Linear, Co or Cross-Polarized |
| Gain (±.3 dBi) | Transmit = 42.0 dBi @ 6.138 GHz Receive = 38.0 dBi @ 3.913 GHz |
| 3 dB Beamwidth | Transmit = 1.3° @ 6.1 GHz Receive = 2.1° @ 3.9 GHz |
| Antenna Cross-Polarization | >30 dB (on axis) |
| Antenna Noise Temperature | 10° Elevation = 40°K 20° Elevation = 35°K 30° Elevation = 32°K |
| VSWR | 1.3:1 Max. |
| Isolation, Tx to Rx | 60 dB Min. |
| Feed Interface | Transmit = Type N or CPR-137 Receive = CPR-229 |
| Mechanical Specifications | |
| Reflector Material | Glass Fiber Reinforced Polyester |
| Antenna Optics | One-Piece Offset Feed Prime Focus |
| Mount Type | Elevation over Azimuth |
| Elevation Adjust. Range | 10°-90° Continuous Fine Adjustment |
| Azimuth Adjust. Range | 360° Continuous; ±12° Fine Adjustment |
| Mast Pipe Interface | 6.63 in.(168 mm) Diameter |
| Wind Loading | Operational = 45 mi/h (72 km/h) Survival = 125 mi/h (200 km/h) |
| Temperature | -50°C to 80°C |
| Humidity | 0 to 100% (Condensing) |
| Atmosphere | Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas |
| Solar Radiation | 360 BTU |
| Shock and Vibration | As Encountered During Shipping and Handling |
