RG11 Coaxial Cable -75 Ohms , 95% CCS Braid Coverage,Black PVC Jacket
RG11 Coaxial Cable -75 Ohms , 95% CCS Braid Coverage,Black PVC Jacket
Sale
Sold out
Couldn't load pickup availability
RG11 -75 Ohms , 95% CCS Braid Coverage,Black PVC Jacket,

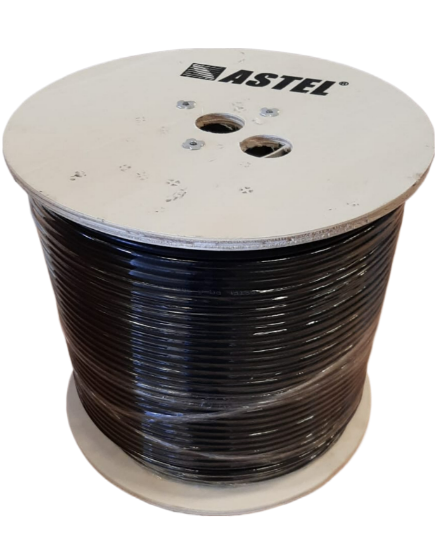

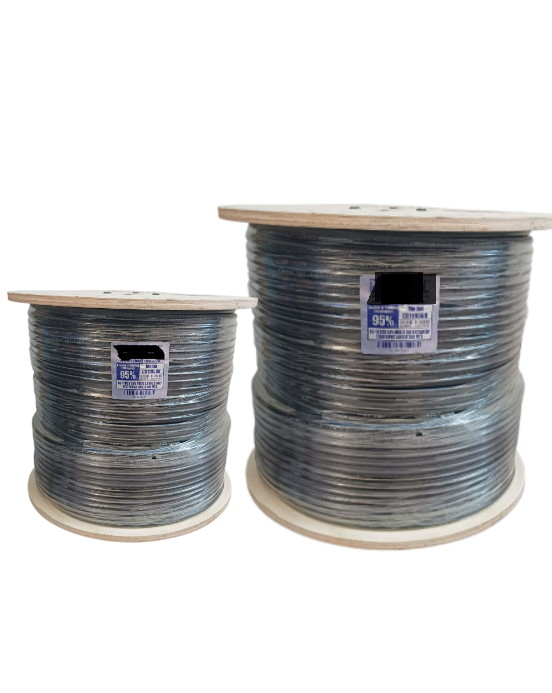

RG11 Coaxial Cable 305m /Reel
RG11 Cable is designed for longer life, high reliability, high shielding and Low Satellite signal attenuation. It is suitable for reception and distribution of all types of Digitally Modulation Signals i.e. DVB-S/S2, DVB-T/T2, QAM, QPSK, COFDM etc. ASTEL RG-6 CCS Series is suitable for SD/HD Satellite signal reception.
|
PRODUCT DESCRIPTION |
|
|---|---|
| INNER CONDUCTOR | COPPER CLAD STEEL |
| BRAID COVERAGE | 95% |
| BRAID MATERIAL | Al-Mg Alloy Wire |
| CENTER CONDUCTOR DIAMETER | 1.63mm |
| FOAM PE Dieelectric Gas Injected | 7.11mm |
| Sealed AP Tape | 7.30mm |
| Aluminum Braiding | 7.80mm |
| PVC jacket | 10.10mm |
| Inner conductor | 41 ohms/KM |
| Outer Conductor | 23.00 ohms/KM |
|
ELECTRICAL SPECIFICATIONS |
|
|
IMPEDANCE |
75.0 +/- 3.0 Ohms |
| NOMINAL CAPACITANCE | 53.0 pf |
|
VELOCITY OF PROPAGATION |
85.0% NOMINAL |
|
Package : 305, Reel |
weight (kg) 28 kg , 42 x 42 x35 cm |
|
ATTENUATION |
@ 68°F (20°C) |
