Promax RANGERNeo 3: TV Signal & Spectrum analyzer (high-end class)

Promax RANGERNeo 3: TV Signal & Spectrum analyzer (high-end class)

Request for a quote

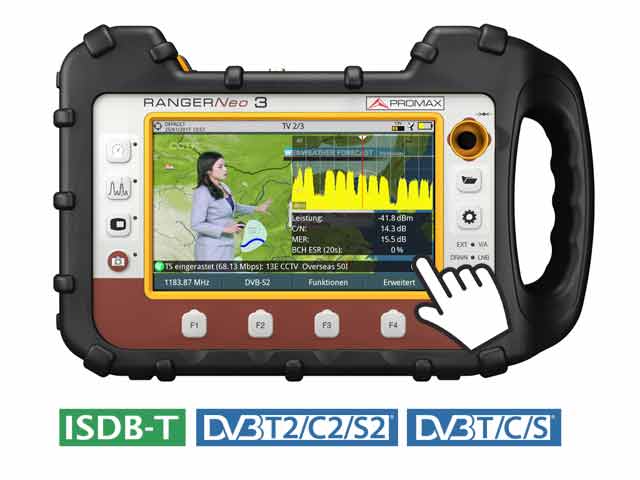

The RANGER Neo 3 is a professional Field Strength Meter and Spectrum Analyzer that is part of a new breed of multifunction, TV, Satellite, CATV and WIFI analyzers.

They are intended to help expert installers and broadcast engineers not only to make their classic installation and troubleshooting work easier but also to deal with the many challenges brought about by the wireless world and the new video delivery platforms.

HEVC H.265 decoding and exceptional spectrum analyser capabilities are at the heart of the RANGER Neo 3 field strength meter surrounded by many functions such as WiFi analysis (including real spectrum display), wide band LNB compatibility, constellation diagram, dynamic echoes analysis, etc..., all in a very compact and light weight product ideal for field work.

SPECIFICATIONS RANGER Neo 3
OPERATION MODES


    • Hybrid operation: 7” touch screen or conventional buttons
    DIGITAL STANDARDS
    • DVB-T, DVB-T2, DVB-T2 lite
    • DVB-T2-MI (Gateway to modulator)
    • DVB-C, DVB-C2
    • DVB-S, DVB-S2, DVB-S2 multistream
    • ISDB-T/Tb
    • DSS, ACM/VCM/CCM
    • DAB, DAB+
    • MPEG-TS
    VIDEO CODECS
    • MPEG-2, MPEG-4 H.264, HEVC H.265
    AUDIO CODECS
    • MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus

    INPUTS AND OUTPUTS
    • Universal RF connector 75 Ω
    • ASI-TS input and output
    • IPTV input UDP/RTP RJ45 Ethernet 1 Gbps
    • HDMI output
    • IP input for remote control
    • Analogue Video/Audio input
    • Common Interface module slot
    • 1 pps input
    • 2xUSB for data tranferring and GPS module

     FUNCTIONS
    • 4K Frame grabber
    • DAB, DAB+
    • GPS Coverage Analysis
    • Network delay (DVB)
    • DVB-T2-MI analysis
    • IPTV multicast measurement and decoding
    • TS analysis
    • TS recording
    • Merogram
    • Spectrogram
    • Signal monitoring
    • Remote control (webControl)
    • MER by carrier
    • Video/Audio Streaming
    • SCAN + TILT
    • Shoulder attenuation
    • Constellation diagram
    • LTE ingress test
    • Dynamic echoes analysis
    • StealthID (instant identification of tuning parameters)
    • PLS (Physical Layer Scrambling)
    • Ultra fast spectrum analyzer (70 ms sweep time)
    • MAX and MIN hold
    • FM RDS radio measurement and decoding
    • Screenshots and Datalogger for measurement reports
    • Beacon-Flyaways for SNG & VSAT
    • Wideband LNB
    • WiFi 2.4 GHz
    • LTE 1.8 GHz
    • OTT
    • Service recording
    • Field strength measurement
    • Task planner
    RESOLUTION BANDWIDTHS
    • 2, 10, 20, 30, 40, 100, 200 kHz
    • 1 MHz



    OPTIONS


    • Advanced DAB/DAB+ analyzer
    • Advanced FM radio analyzer
    • Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm
    • OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input
    • WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input
    PC CONNECTION (via ethernet interface)
    • NetUpdate 4 (free software)
    • Free and automatic firmware updates
    • Remote control (webControl)
    • User customised channel plans
    • Measurement reports and screenshots
    • Audio/Video streaming
