Promax ATLAS NG: The ATSC 3.0 and DVB universal broadcast analyzer

Promax ATLAS NG: The ATSC 3.0 and DVB universal broadcast analyzer

Request for a quote

ATLAS NG is a broadcast spectrum analyzer capable of taking measurements up to 6 GHz covering the S and C bands, where an increasing number of technologies are all fiercely competing for bandwidth. It includes the latest broadcast technologies such as ATSC 3.0 and DVB-S2x in addition to 5G interference detection.

It includes a 3G-SDI input to run a full 3G-SDI signal diagnosis, including a professional audio meter and eye diagram, and features an external SDI input for that task, other than the standard ASI input and output.

The built-in IPTV analyzer is able to analyze up to 4 IPTV streams simultaneously. The omnipresence of IP technology in the broadcast industry makes it compulsory for an analyzer to be capable of feeding from IPTV signals and monitor them. The flexibility of IPTV allows to flood a network with multiple streams. Therefore, it becomes essential to have at hand a tester that can monitor and picture several IPTV streams simultaneously.

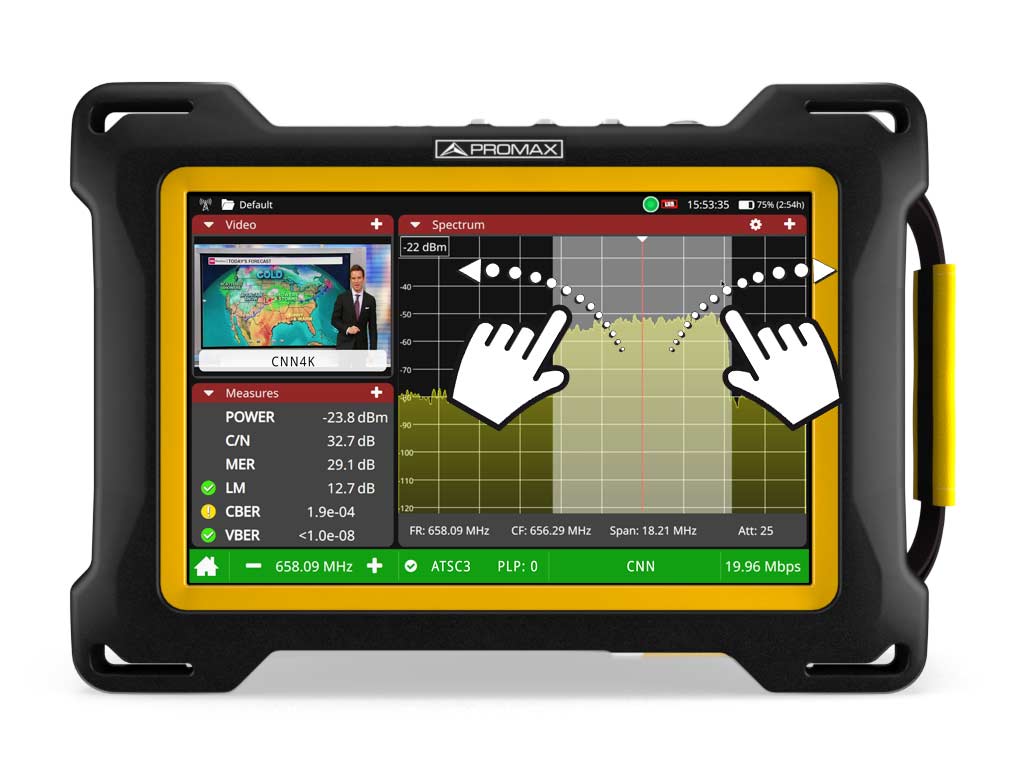

The new multitouch user interface based on customizable docking pannels ensures an improved user experience. The analyzer is easier to use than ever before!




SPECIFICATIONS ATLAS NG

BROADCAST STANDARDS

  • Digital terrestrial TV / Radio
  • Digital cable
  • Digital satellite
  • Analogue



  • DVB-T, DVB-T2 (T2-base, T2-lite), ISDB-T, ATSC 1.0, ATSC 3.0, DAB, DAB+
  • DVB-C, DVB-C2, J.83 annex-B
  • DVB-S, DVB-S2, DVB-S2x, DSS, DCII (DigiCipher 2)
  • Analogue terrestrial, FM RDS
SPECTRUM ANALYZER MODE
  • From 5 MHz to 6 GHz
IPTV OPERATING MODE
  • Up to 4 simultaneous multicast/unicast streams (reception, measurement and recording)
SDI OPERATING MODE
  • 3 Gbps input/output. SD-SDI, HD-SDI and 3G-SDI compatible. It includes eye statistical diagram.

WIFI ANALYZER OPERATING MODE
  • Spectrum analyzer + WiFi dongle

OTT ANALYZER OPERATING MODE
  • Supports MPEG-DASH and HLS. Codecs H.265, H.264, MPEG-2, VP8, VP9, MVC, WMV9, JPEG/MJPEG, VC-1
ASI-TS OPERATING MODE
  • Supports TS, T2MI, BTS



OPTIONAL OPTICAL FIBRE


  • Selective optical power meter + optical to RF converter
INPUTS AND OUTPUTS
  • Universal RF input (N-type, female 50 Ω)
  • ASI/SDI input and output (BNC female, 75 Ω 3 Gbps)
  • SPF+ connector
  • Analogue audio/video input (3.5 mm jack)
  • HDMI output (v1.4b up to 3840x2160 pixels @30 Hz)
  • USB 2.0 (Micro-B). Mass storage/remote control commands
  • Ethernet (RJ45) for webControl/remote control commands
  • Optical input (FC/APC, female)
  • 1 PPS / 10 MHz reference
  • Entrada IPTV (Ethernet RJ45 10/100/1000 Mbps)
  • IPTV input (RJ45 Ethernet 10/100/1000 Mbps)
  • Stereo headphone audio output (3.5 mm jack)
  • USB 3.0 host (A-type USB-CDC devices)
  • CAM (DVB-CI compliant CAM module input)
FUNCTIONS
  • Constellation diagram
  • LTE ingress test
  • Dynamic echoes analysis
  • StealthID (instant identification of tuning parameters)
  • PLS (Physical Layer Scrambling)
  • Ultra fast Spectrum analyzer
  • 4K decoder
  • MAX and MIN hold
  • FM RDS radio measurement and decoding
  • Screenshots and Datalogger for measurement reports
  • Beacon-Flyaways SND and VSAT
  • Wideband LNB
  • WiFi 2.4 GHz
  • LTE 1.8 GHz
  • OTT
  • Service Recording
  • Field strength measurement
  • Task planner
  • Merogram
  • Spectrogram
  • Signal monitoring
  • Remote control (webControl)
  • MER by carrier
  • Coverage analysis
  • Video/Audio Streaming
  • SCAN + TILT
  • TS recording
  • TS analysis
  • IPTV multicast measurement and decoding
  • Shoulder attenuation
  • Network delay
  • DVB-T2 MI analysis
  • Eye diagram
  • ALP recording
  • Carrier Frequency Drift Test
