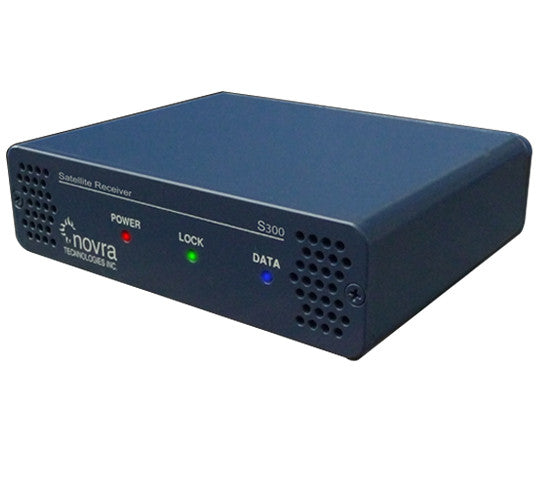

Novra S300CA DVB-S2 Satellite Data Receiver

Novra S300CA DVB-S2 Satellite Data Receiver

The S300CA provides all the functions and features described above in the S300D and S300V receivers, plus it adds a DVB-Compliant conditional access Common Interface (DVB-CI) slot. The inclusion of the DVB-CI slot provides a cost-effective means to provide compatibility with the vast majority of DVB conditional access systems.

The S300CA is ideally suited as a video aggregation point for your IPTV network where distribution over LAN is desired and the content is scrambled with a DVB conditional access system. The S300CA is typically deployed along side the S300V into head-end networks such as: hotel or cruise ship infotainment, IPTV service, or cable TV service head ends. More can be learned by clicking below.

Novra’s S300 DVB-S2 Data receiver extends the performance of the S200 DVB-S2 Data receiver by enabling operation up to 32 APSK with multistream VCM support and by providing enhanced video handling capabilities.

The S300 capabilities are summarized along with the S75 and S200 in the Novra Receiver Summary Table below.

The following features are common to all S300 models:

• DVB-S and DVB-S2 Compliant
• DVB-S Demodulation:
  • QPSK (DVB-S) up to 45 Msps @ 7/8 FEC
• DVB-S2 Demodulation
  • QPSK up to 45 Msps @ 8/9 FEC
  • 8PSK up to 45 Msps @ 9/10 FEC
  • 16 APSK up to 45 Msps @ 9/10 FEC
  • 32 APSK up to 45 Msps @ 9/10 FEC
• Up to 80 Mbps Sustained Throughput
• Support for VCM
• Support for ISI Filtering
• Operation down to 100 Kbaud
