Novra S200 DVB-S2 Satellite Data and Video Receivers
Novra S200 DVB-S2 Satellite Data and Video Receivers
SKU: NOV-S200
Couldn't load pickup availability
The S200 will receive and forward Multi-Protocol Encapsulated (MPE) IP data. It is perfectly suited for consumer or small-medium enterprise use, delivering IP-based applications over satellite such as IPTV content delivery, weather imaging and data, distance education, digital signage, file distribution, and Internet over satellite to a single computer or to a network of computers.

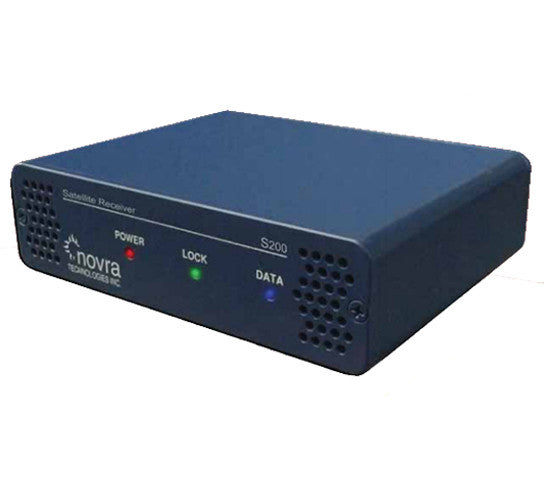

The S200 DVB-S2 satellite receiver is a compact and robust device that receives a DVB-S or DVB-S2 satellite signal and passes the IP or MPEG data onto your LAN.
The S200 capabilities are summarized along with the S75 and S300 in the Novra Receiver Summary Table.
The following features are common to all S200 models:
- DVB-S and DVB-S2 Compliant
- DVB-S Demodulation:
- QPSK (DVB-S) up to 45 Msps @ 7/8 FEC
- DVB-S2 Demodulation
- QPSK up to 45 Msps @ 8/9 FEC
- 8PSK up to 30 Msps @ 9/10 FEC
- Up to 80 Mbps Sustained Throughput
- RJ45 10/100BaseT Ethernet Interface
- IGMP Support
- Compact Form Factor
Height 3.58 cm 1.41 in
Width 13.27cm 5.22 in
Length 10.42 cm 4.10 in.
| RF Tuner | |
|---|---|
| Receiving Frequency | 950 to 2150 MHz |
| Frequency Acquisition | ± 50% Symbol Rate up to ±10 MHz |
| Input Signal Level | -70 dBm to -25 dBm |
| Multi-standard Demodulation | |
| DVB-S - QPSK | 1.0 to 45 Msps (auto selection) |
| DVB-S2 - QPSK | 1-45 Msps (auto selection) |
| DVB-S2 - 8PSK | 1-30 Msps (auto selection) |
| Data Rate | 72 Mbps |
| Nyquist Root Filter | 0.2, 0.25, 0.35 rolloff |
| Multi-Standard Decoding FEC (Forward Error Correction) | |
| DVB-S | Viterbi 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 puncture rates Reed Soloman 16 bit decoder |
| DVB-S2 | LDPC 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 rates BCH (Bose-Chaudhuri-Hocquenghem) decoder |
| LNB Power and Control | |
| LNB Supply Voltage | Selectable 13/18V, 11/15V or off |
| LNB Supply with selectable long line compensation | |
| LNB Control | Selectable 22 KHz, 44 KHz or o |
| LNB Supply Current | 400 mA with Short Circuit and Surge Protection |
| Configuration | |
| IP Address Configuration | |
| PIOD Selection | |
| LNB Power | |
| Transponder Settings | Symbol Rate, Frequency, Polarization, Band, Power |
| Management Console Application Currently Available as both an Executable and a DLL for MS Windows |
|
| Status Monitoring | |
| Signal Strength | |
| Signal Lock, Data Lock | |
| Error status | Viterbi BER, Uncorrectable Errors |
| Status Indicators | |
| Power | Red LED |
| Lock | Green LED |
| Data | Blue LED |
| Ethernet Link (green) and Transmit (yellow) | |
| Hardware Capabilities | |
| Multiprotocol Encapsulation (MPE) | |
| PID Filters | 16 |
| Internal Hardware Watchdog | |
| Non-Volatile Configuration Storage | |
| Field upgradeable operating system for new s/w releases and functional upgrades |
|
| Operating Systems | |
| Once Configured, Receiver Supports all Operating Systems |
|
| Physical Interfaces | |
| RF Input Connector | F-Type, 75 ohms |
| Ethernet 100 Base-T LAN Interface | RJ-45 |
| Physical/Environmental | |
| Height | 1.41 in (3.58 cm) |
| Width | 5.22 in (13.26 cm) |
| Depth | 4.10 in (10.42 cm) |
| Operating Temperature | 0C to 40C |
| Storage Temperature | -55C to 85C |
| Operating Humidity | 10 to 90% Non-Condensing |
| Standards/Regulatory | |
| UDP/TCP/IP Protocol | |
| IP Multicast | |
| IGMP | V1.0, V2.0 |
| ETSI 301.192 DVB | |
| ISO/IEC 13818-1 | |
| ISO/IEC 13818-6 | |
| IEEE 802.3 10/100 Mbps | |
| FCC/Industry Canada CE | |
| Emission EN 55022 | |
| Immunity EN 55024 | |
| Safety EN 60950 | |
