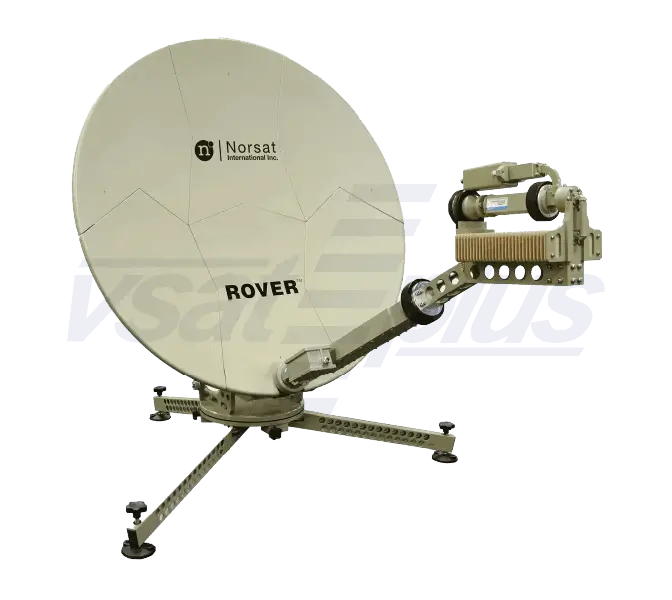

Norsat Rover 1.0 m Ka-Band Manual Acquire Flyaway Antenna
The ROVER™ is an ultra-lightweight fly-away satellite terminal with unsurpassed reliability, advanced assisted-acquire technology, and a flexible deployment platform. Available in both 1.0 and 1.2 m antenna sizes, the ROVER’s components can be tightly integrated for rapid deployment or separated into indoor and outdoor units for safe operation in dangerous terrain or situations. With IATA compliant packaging and a tool-free assembly process, the ROVER is easy to transport and operate, with military grade durability you can rely on wherever your mission takes you.
| RO100KAM004 Key Specifications | |
|---|---|
| Acquisition And Tracking | Manual |
| Band | Ka-Band |
| Product Family | RO100KAM004 |
| Receive Frequency | Ka-Band (Military): 18.20 - 21.20 GHz |
| Reflector Diameter | 1.0 m |
| Transmit Frequency | Ka-Band (Military): 30 - 31 GHz |
| Antenna Specifications |
|
| Axial Ratio | <1.0 dB in Tx Band |
| Azimuth Range | +/- 300°, Manual with fine adjust |
| Cross Polarization Isolation | n/a |
| Elevation Range | 5° to 85°, Manual with fine adjust |
| Feed Configuration | 2-port circular |
| Polarization | Circular / Linear RHCP/LHCP or LHCH/RHCP |
| Primary Antenna Power | AC 110/220 VAC (50/60 Hz ) |
| Standard Buc Options | 4W, 10W, 25W, 50W |
| RF Specifications |
|
| Eirp | 53.5 dBW |
| G T | 21.5 dB/K |
| Max Ssg Variation | +/- 1 dB per 36 MHz |
| Movement Platform | Elevation over Azimuth |
| Reference Signal Frequency | 0 +/- 5 dBm @ 10 MHz |
| Rx Gain | >44.0 dBi |
| Spectral Regrowth | -26 dBc |
| Tx Gain | >48.0 dBi |
| Environmental Specifications |
|
| Humidity | 5-95 % non-condensing, meets MIL-STD-810G |
| Rainfall Survival | 360 mm/h, meets MIL-STD-810G |
| Salt Mist | Meets MIL-STD-810G |
| Shock | Meets MIL-STD-810G |
| Temperature Operational | -30°C to +55 °C, meets MIL-STD-810G |
| Vibration Loose Cargo | Meets MIL-STD-810G |
| Vibration Operational | Meets MIL-STD-810G |
| Vibration Random | Meets MIL-STD-810G |
| Windspeed Operational | 60 km/h |
| Windspeed Survival | 100 km/h |
| Physical Specifications | |
| Iata Cases Available | Optional |
| Number Of Cases | 2 standard, 3 IATA |
