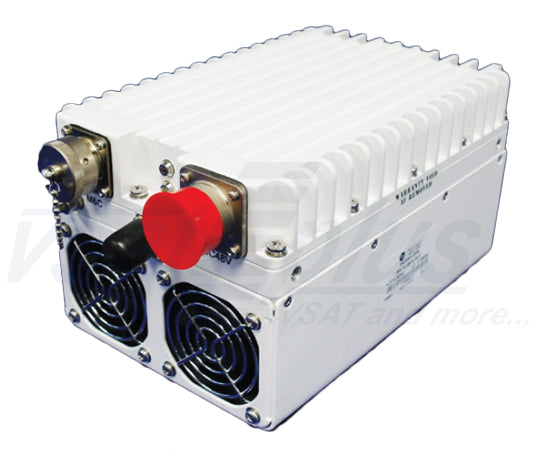

Norsat MEDIAN Series 40W Extended Ku-Band BUC
Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ku-band MEDIAN series has been designed with both performance and economy in mind, making it ideal for VSAT applications where size, weight and power constraints are not as stringent.
FEATURES
- Model MEDIBKU040E
- Output frequency (MHz) 13.75 – 14.5 GHz
- L.O. frequency (GHz) 12.80 GHz
- Input frequency (MHz) 950 – 1700 MHz
MECHANICAL DRAWING
RF Specifications |
|
| Output Power (P1db) | 46 dBm min |
| External Reference | 10MHz |
| Reference Power Level | -5 dBm to +5dBm |
| Phase Noise (SSB) | -73 dBc/Hz at 1 KHz -83 dBc/Hz at 10 KHz -93 dBc/Hz at 100 KHz -103 dBc/Hz at 1 MHz |
| Gain | 65 dB nominal |
| Gain flatness | +/- 1.5 dB over full std band +/- 2.0 dB over full ext band +/- 0.5 dB over 36 MHz |
| Gain variation over temperature | +/- 1.5 dB |
| Output Spurious | -55 dBc max |
| IM3 | 25 dBc at 3 dB back-off from rated 30 dBc at 6 dB back-off from rated |
| Gain Adjustment Range | 20 dB |
Interfaces |
|
| Input VSWR | 1.5 : 1 |
| Output VSWR | 1.25 : 1 |
| Input Connector | Type-N, female |
| Output Connector | WR75-G (grooved) |
Environmental & Physical |
|
| Temperature (operational) | -30°C to +55°C |
| Humidity (operational) | IP65 |
| Dimensions (L x W x H) | 206 x 136 x 117 mm |
| Weight | 4.5 kg |
Power |
|
| Power requirements | +36 to +72V, 48 VDC nominal 48 VDC over IFL optional |
| Power Consumption | 300W at rated power 270W at 3 dB back-off from rated |
Monitor & Control |
|
| M&C Interface | RS-232 / RS-485 / Ethernet |
| M&C Connector | PT02E-14-19P (MS3112) |
| LED Indicators | Red, Yellow |
