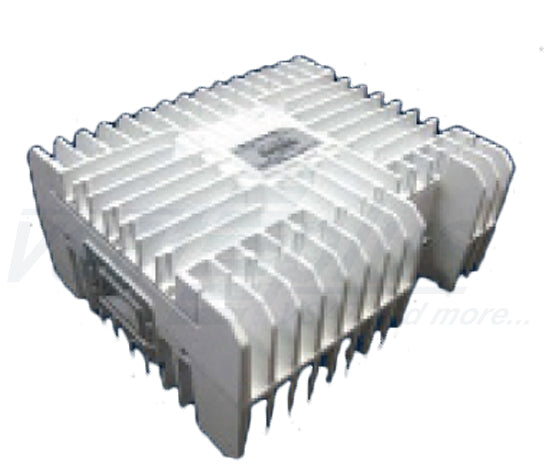

Norsat ELEMENT Series 20W Standard C-Band BUC
Norsat Satellite Communcation solutions are renowned for their high quality, reliability, and innovation. The C Band ELEMENT series
offers small size and weight with a variety of frequency options that make it ideal for VSAT applications.
FEATURES
- Model No. BUC-ELMTC020-S
- Output frequency (Mhz) 5.850- 6.425 GHz
- L.O. frequency (GHz) 4.90 GHz
- Input frequency (GHz) 950 – 1525 MHz
MECHANICAL DRAWING
| RF Specifications | |
|---|---|
| Output Power (P1db) | 43 dBm min |
| External Reference | 10MHz |
| Reference Power Level | -5 dBm to +5dBm |
| Phase Noise (SSB) | -60 dBc/Hz at 100Hz -70 dBc/Hz at 1kHz -80 dBc/Hz at 10kHz -90 dBc/Hz at 100KHz |
| Linear gain | 70 dB |
| Gain flatness | +/-4.0 dB p-p, max over full band +/- 1.5 dB p-p over 54MHz |
| Gain variation over temperature | -4.0 dB p-p over operating range |
| Output Spurious | -In Band -60 dBc -Out Band -50 dBc |
| Interfaces | |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Input Connector | F: 75 Ω |
| Output Connector | CPR137G |
| Environmental & Physical | |
| Temperature (operational) | -40 C to +55 C |
| Humidity (operational) | 0 – 100% condensing |
| Dimensions (L x W x H) | 220 x 195 x 136 mm |
| Weight | 5 kg |
| Enclosed Accessories | O-Ring (1 pc) Screws (4 pc) |
| Power | |
| Power requirements | +36 to +60 VDC over IFL |
| Power Consumption | 180W max |
