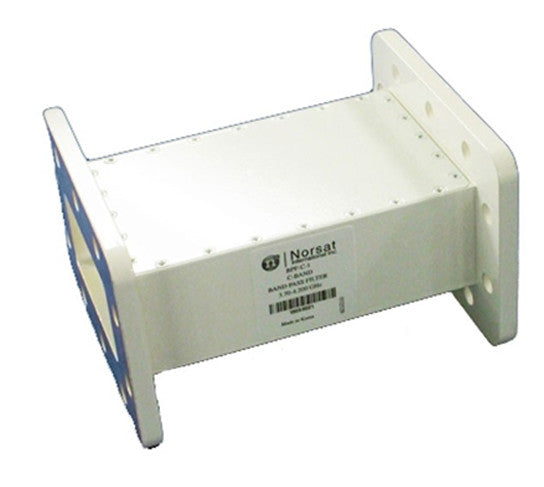

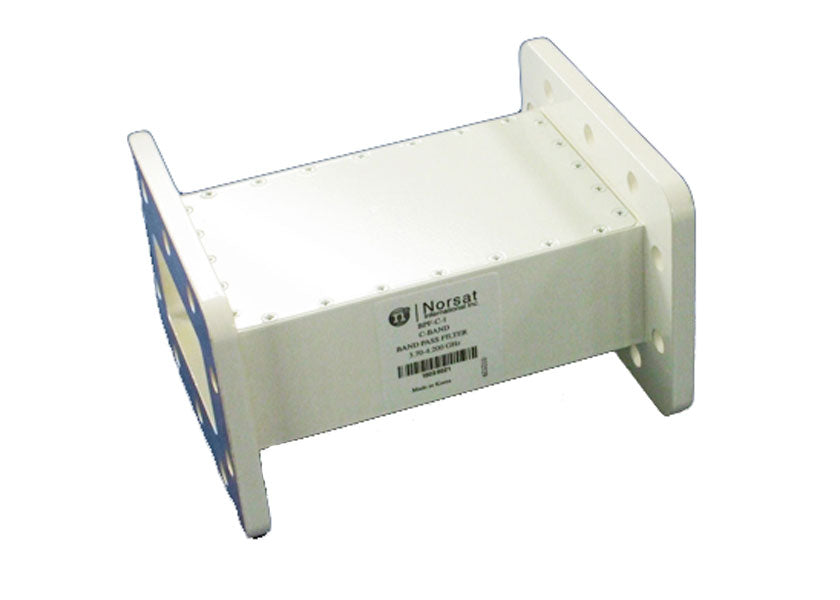

Norsat C-Band Band Pass Filter (BPF-C-5)
Norsat C-Band Band Pass Filter (BPF-C-5)
Sale
Sold out
SKU: BPF-C-5
Couldn't load pickup availability
Norsat C-Band Band Pass Filter (BPF-C-5)
- Frequency Range: 3.90 - 4.20 GHz
- Rejects terrestrial interference in C-Band (WiMAX, Radar and C-Band transmitter)
- Easily installed between the feed and LNB
- Suitable for use with Norsat’s C-Band LNBs
- Environmentally sealed and moisture resistant
- VSWR: 1.4 : 1
- Insertion loss in band: 0.5 dB
- Waveguide flange: CPR-229G (input), CPR-229F (output)
- Dimensions: 120 (L) x 100 (W) x 70 mm
- Weight: 650 g
| BPF-C-5 Typical Specifications | |
|---|---|
| Frequency range | 3.90 - 4.20 GHz |
| VSWR | 1.4 : 1 |
| Insertion loss in band | 0.5 dB |
| Waveguide flange | CPR-229G (input), CPR-229F (output) |
| Dimensions | 120 (L) x 100 (W) x 70 mm |
| Weight | 650 g |
