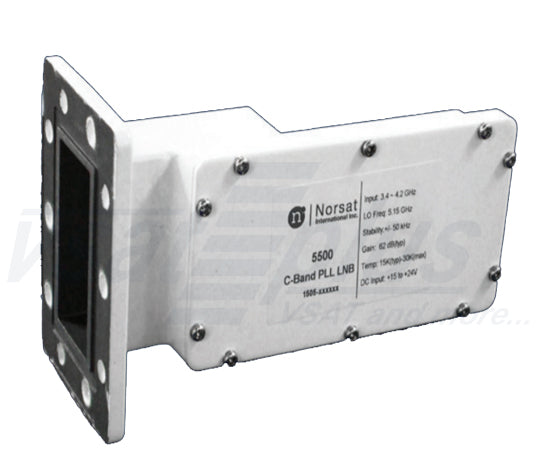

Norsat 5500 Series C-Band PLL LNB +/-50 kHz

Ideal for DVB (Digital Video Broadcast), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications

• Input Frequency: 3.4 - 4.2 GHz
• L.O. Stability: +/-50 kHz
• Noise Figure: .22 dB typical
• Output Connector: F-Type Female or N-Type Female
• L.O. Frequency: 5.15 GHz
• Conversion Gain: 62 dB typical

TYPICAL SPECIFICATIONS

• L.O. stability ±50 kHz – ±100 kHz  depending on model number
• Noise temperature 15 K typ., 30 K max.
• Phase noise -65 dBc/Hz @ 1 kHz offset  -80 dBc/Hz @ 10 kHz offset  -95 dBc/Hz @ 100 kHz offset
• Input VSWR & Output VSWR 2.3:1
• Conversion gain 62 dB typical  55 dB min  70 dB max
• Output P1dB 10 dBm
• Power requirements 12 - 24V DC supplied through  center conductor of IF cable Current drain 250 mA
• Input Waveguide CPR 229G
• Dimensions 190 (L) x 115 (W) x 78 (H) mm  (7.1 x 4.0 x 2.8 in)
• Weight 580 g / 20.5 oz
• Temperature Range -40°C to +60°C
