Norsat

Norsat 5250 Series C-Band PLL LNB (3.4 - 4.2 GHz) +/-250 kHz

Norsat 5250 Series C-Band PLL LNB (3.4 - 4.2 GHz) +/-250 kHz

Input Type
Request for a quote

SKU: NOR-5250F

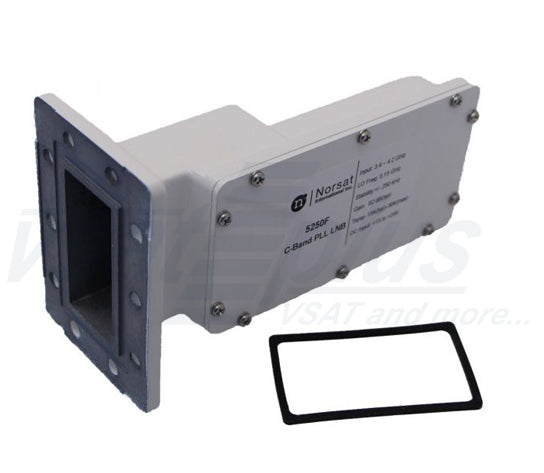

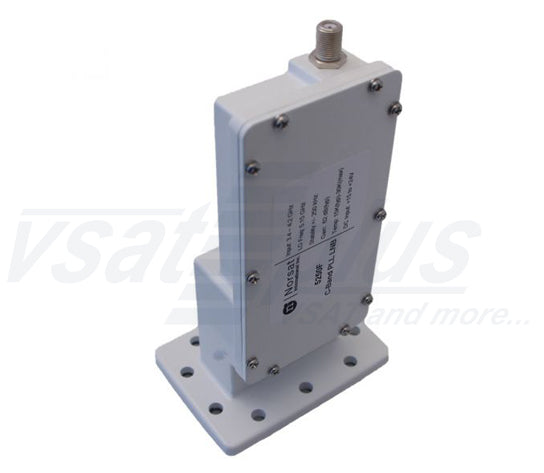

NORSAT 5250 SERIES C-BAND PLL LNB

Ideal for DVB (Digital Video Broadcast), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications where built-in interference rejection is required

  • Input Frequency: 3.4 - 4.2 GHz
  • L.O. Stability: +/-250 kHz
  • Noise Figure: 15K typical
  • Output Connector: Type "N" or F Female
  • L.O. Frequency: 5.15 GHz
  • Conversion Gain: 62 dB typical
  • Output frequency (MHz) 950 – 1750 MHz

TYPICAL SPECIFICATIONS

  • L.O. stability ±150 kHz, ±250 kHz
  • Noise temperature 15 K typ., 30 K max.
  • Phase noise -65 dBc/Hz @ 1 kHz offset -80 dBc/Hz @ 10 kHz offset -95 dBc/Hz @ 100 kHz offset
  • Input VSWR & Output VSWR 2.5:1
  • Conversion gain 62 dB typical 55 dB min 70 dB max
  • Output P1dB 5 dBm
  • Power requirements 12 - 24V DC supplied through center conductor of IF cable
  • Current drain 250 mA
  • Input Waveguide CPR 229G
  • Dimensions 190 (L) x 115 (W) x 78 (H) mm (7.1 x 4.0 x 2.8 in)
  • Weight 580 g / 20.5 oz
  • Temperature Range -40°C to +60°C
