Norsat 5100I Insat C-Band PLL LNB +/-100 kHz

Norsat 5100I Insat C-Band PLL LNB +/-100 kHz

Input Type
Request for a quote

SKU: NOR-5100IF

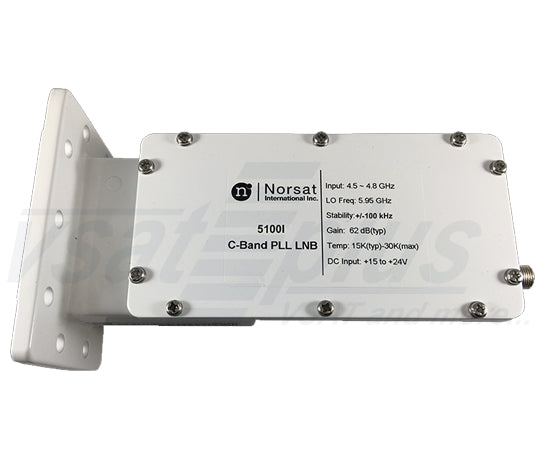

Norsat 5100I Insat C-Band PLL LNB +/-100 kHz

Ideal for DVB (Digital Video Broadcast), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications where built-in interference rejection is required

  • Input Frequency: 4.5 - 4.8 GHz
  • L.O. Stability: +/-100 kHz
  • Noise Figure: 15K typical
  • Output Connector: Type-F Female
  • L.O. Frequency: 5.95 GHz
  • Conversion Gain: 62 dB typical
  • Output frequency (MHz) 1150 – 1450 MHz

Norsat 5100I Insat C-Band PLL LNB +/-100 kHz

Model
  • Norsat 5100I
  • Norsat 5100IF
  • Norsat 5100IN
Input Frequency
  • 4.5 - 4.8 GHz
Local Frequency
  • 5.95 GHz
Local Stability
  • ±100 kHz
Noise Temperature
  • 15K
Output Frequency
  • 1150 - 1450 MHz
Phase Noise
  • -65 dBc/Hz @ 1 kHz
  • -80 dBc/Hz @ 10 kHz
  • -95 dBc/Hz @ 100 kHz
Input VSWR
  • 2.3:1
Output VSWR
  • 2.3:1
Gain
  • 62 dB typical
  • 55 dB min.
  • 70 dB max.
Output P1dB
  • 10 dBm
Power
  • 12 - 24V DC supplied through center conductor of IF cable
Current Drain
  • 250 mA
Input Waveguide
  • CPR 229G
Temperature Range
  • -40°C to +60°C
Dimensions
  • 7.1 x 4.0 x 2.8 Inches
Weight
  • 20.5 oz
