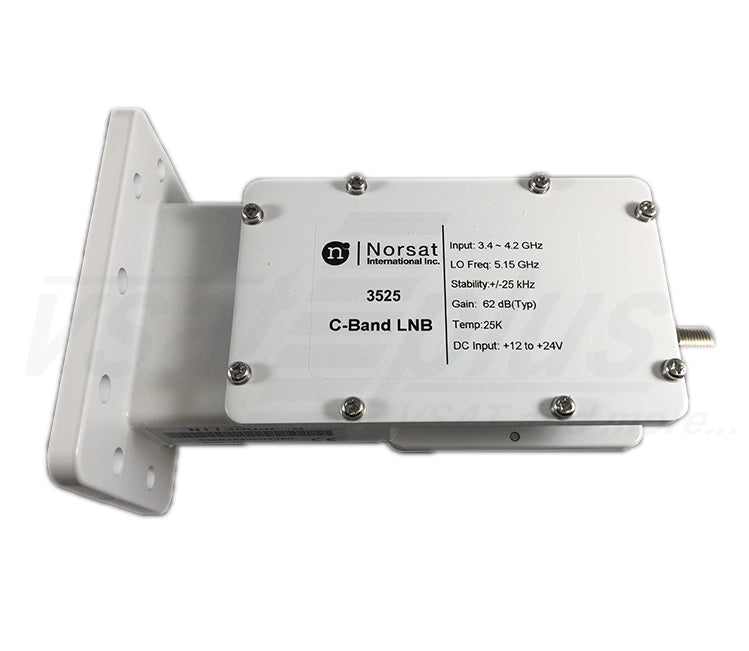

Norsat 3525 Series High Stability C-band PLL LNB +/- 25 kHz
Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. Norsat’s Low Noise Blocks (LNB) provide signal reception for satellite communication around the world. Norsat LNBs feature:
- - The industry’s best LO (Local Oscillator) stability
- - High performance for any application
- - Excellent availability and short lead times Stock units are available in standard and extended C-Band frequencies. Special order units are available in a wide variety of additional frequencies from 10.38 – 10.55 GHz up to 17.7 - 18.1 GHz.
|
FREQUENCY BANDS AVAILABLE |
|
| Input frequency (GHz) | 3.40 to 4.20 |
| L.O. frequency (GHz) | 5.15 |
| Output frequency (MHz) | 950 to 1750 |
|
TYPICAL SPECIFICATIONS |
|
| Noise temperature | 25K |
| L.O. stability (over temperature excl offset) | ±25 kHz |
| Phase noise (SSB) ▼ | |
| 1kHz | -80 dBc/Hz |
| 10kHz | -85 dBc/Hz |
| 100kHz | -95 dBc/Hz |
| Input VSWR | 2.2 : 1 |
| Output VSWR | 2.2 : 1 |
| Conversion gain | 62 dB |
| Output P1dB | 9 dBm |
| Power requirements | +12 to +24 V supplied through center conductor of IF cable |
| Current drain | 250 mA |
| Input Waveguide | CPR229G |
| Dimensions | 144 (L) x 70 (W) x 98 (H) mm |
| (5.7 x 2.8 x 3.9 in) | |
| Weight | 500 g / 17.6 oz |
| Temperature Range | -40°C to +60°C |
| Relative Humidity | 0 - 100% condensing |
