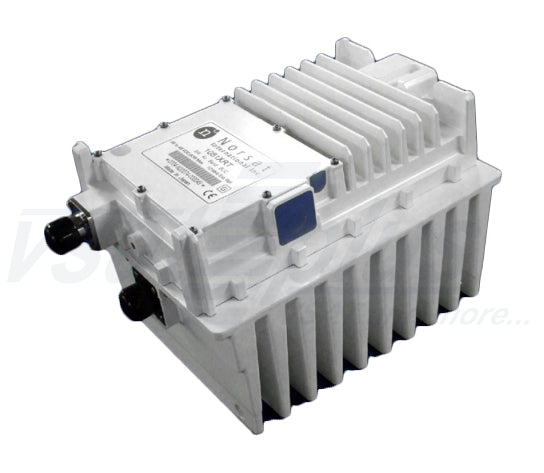

Norsat 1081XRTS 8W Selectable Ku-Band BUC
Norsat 1081XRTS 8W Selectable Ku-Band BUC
Sale
Sold out
SKU: 1081XRTSF
Couldn't load pickup availability
1081XRTS Switchable Ku-Band BUC
The Norsat 1081XRTS Selectable Ku-Band BUC is switchable between Standard (14.0 to 14.50 GHz) and Extended (13.75 to 14.50 GHz) Ku-Band. The 1081XRTS is fully contained including Universal Outdoor AC Power Supply, Universal BUC Support Brackets, 3m Cable and AC Power Supply cord connectors - AC PS Cable not included
| 8W Non-Inverted Typical Specifications | |
|---|---|
| Output frequency | 13.75 to 14.50 GHz (14.00 to 14.50 GHz) |
| Input frequency | 950 to 1700 MHz (950 to 1450 MHz) |
| Output to P1dB | 39 dBm |
| L.O. frequency | 12.80 GHz (13.05 GHz) |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.1 : 1 |
| Phase noise (SSB) | -70 dBc/Hz at 1kHz -80 dBc/Hz at 10kHz -90 dBc/Hz at 100kHz |
| External reference signal frequency | 10 MHz |
| External reference level | -5 to +5 dBm |
| 10 MHz external reference phase noise | -135 dBc/Hz at 100 Hz -140 dBc/Hz at 1 kHz -150 dBc/Hz at 10 Hz |
| Gain (including variation over temperature and frequency) | 56 dB min 66 dB max |
| Gain stability over temperature | ±2.25 dB at any constant frequency |
| Gain stability in-band at any constant temperature | ±1.0 dB in any 54 MHz band ±3.0 dB over full 750 MHz band |
