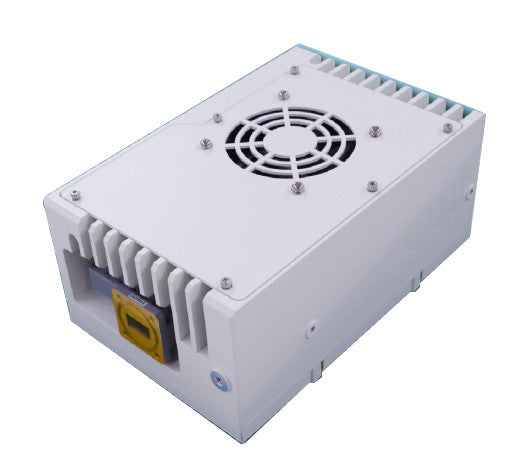

New Japan Radio NJT8371UNMK 40W GAN Universal Ku-Band Robust BUC
New Japan Radio NJT8371UNMK 40W GAN Universal Ku-Band Robust BUC
SKU: NJT8371UNMK
Couldn't load pickup availability
NJRC NJT8371UNMK 40W GAN Universal Ku-Band Robust BUC
-
RF Frequency: 13.75 to 14.5 GHz (Universal Ku-band)
- Local Frequency: 12.8 GHz
- IF Frequency: 950 to 1,700 MHz
- GaN Technology Amplifier Inside
- RF Frequency Line-up
- High Efficiency Output Power
- Saturation Output Power: +46.0 dBm
- ACPR: -30 dBc @ Pout = +44.0 dBm
- Power Consumption: 260 W
- AC Power Operation Option
- Monitor & Control Option
- FSK Communications M&C
- Compact Size & Light Weight
- Dimension: 230 (L) x 150 (W) x 100 (H) mm
- Weight: 4.4 kg
NJT8371UNMK OUTLINE DRAWING
|
Item |
Specifications |
|
Saturation Output Power |
+46 dBm min. @ +25 °C / +45 dBm min. over temperature |
|
Linear Gain |
72 dB nom., 66 dB min. |
|
Gain Variation over frequency Standard Ku-band: Universal Ku-band: |
5 dBp-p max. over 500 MHz / 2 dBp-p max. over 54 MHz 5 dBp-p max. over 750 MHz / 2 dBp-p max. over 54 MHz |
|
Gain Stability over temperature |
2 dBp-p typ., 4 dBp-p max. |
|
ACPR |
-30 dBc typ., -26 dBc min. @ Pout = +44 dBm |
|
L.O. Phase Noise |
-60 dBc/Hz max. @ 100 Hz -70 dBc/Hz max. @ 1 kHz -80 dBc/Hz max. @ 10 kHz -90 dBc/Hz max. @ 100 kHz -100 dBc/Hz max. @ 1 MHz |
|
Input V.S.W.R. / Output V.S.W.R. |
2 : 1 max. / 1.5 : 1 max. |
|
DC Power Requirement (1) Voltage Range (2) Power Consumption @No IF Signal @ Pout=+44dBm @ Psat |
+36 to +60 VDC 120 W typ. 220 W typ. 260 W typ., 290 W max. |
|
Mute |
Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal |
|
M&C |
Interface: FSK Communications Signal / RS-232C Function: Power Monitor / TX On/Off Control / Alarm / Digital Step Attenuator … etc |
|
Temperature Range (ambient) Operating: Storage: |
-40 to +60 °C -40 to +75 °C |
|
Dimension & Housing |
230 (L) x 150 (W) x 100 (H) mm without interface connectors and screws |
|
Weight |
4.4 kg [9.1 lbs ] |
