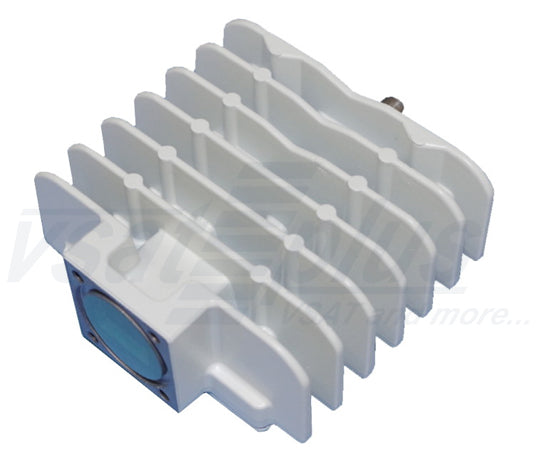

New Japan Radio NJT8304F 4W Standard Ku-Band BUC
New Japan Radio NJT8304F 4W Standard Ku-Band BUC
Sale
Sold out
SKU: NJT8304F
Couldn't load pickup availability
NJRC NJT8304UF 4W Standard Ku-Band BUC
- Output Frequency Range: 14.0 - 14.5 GHz
- L.O. Frequency: 13.05 GHz
- IF Input Frequency: 950 - 1,700 MHz
- Output Power @ P1dB: +36.0 dBm min. over temp.
- DC Power Input: 24V (+12 - 30V)
- Input Connector: F-Type
- Weight: 500g
NJT8304F Mechanical Drawing
| NJT8304F General Specifications | |
|---|---|
| Output Interface | Waveguide, WR-75 with Groove |
| Input Interface | F-Type, female (50 ohm) |
| Output Power @ 1dB G.C.P. | +36 dBm min. over temperature |
| Linear Gain | 62 dB typ., 56 dB min. |
| ACPR | -26 dBc typ. @ Pout = +35.5 dBm |
| L.O. Phase Noise | -60 dBc/Hz max. @ 100 Hz -70 dBc/Hz max. @ 1 kHz -80 dBc/Hz max. @ 10 kHz -90 dBc/Hz max. @ 100 kHz -100 dBc/Hz max. @ 1 MHz |
| L.O. Phase Noise | -60 dBc/Hz max. @ 100 Hz -70 dBc/Hz max. @ 1 kHz -80 dBc/Hz max. @ 10 kHz -90 dBc/Hz max. @ 100 kHz -100 dBc/Hz max. @ 1 MHz |
| Input V.S.W.R. | 2 : 1 max. |
| Output V.S.W.R. | 2 : 1 max. |
| Power Requirement | DC Power, +24 V (Range: +12 to +30 V) |
| Power Consumption | 24W typ. @ No IF Signal 28W typ., 32W max @ Pout =+36 dBm 2W max. @ 10 MHz Reference Off (Mute on) |
| Mute | Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal |
| Temperature Range (ambient) Operating Storage |
-40 to +60°C -40 to +75°C |
| Dimension & Housing | 98 (L) x 98 (W) x 42.5 (H) mm |
| Weight | 500 g |
NJRC NJT8304F 4W Ultra Compact Standard Ku-Band BUC
