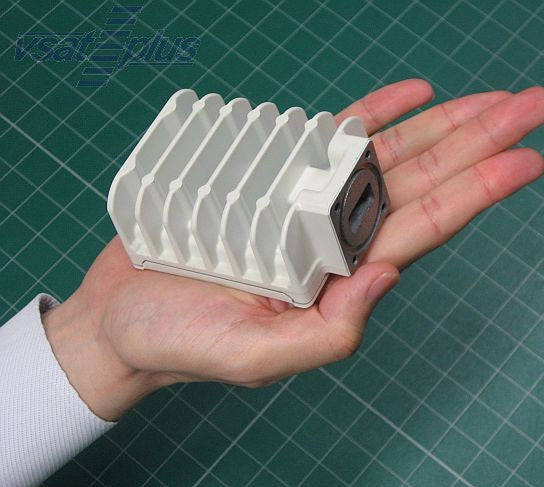

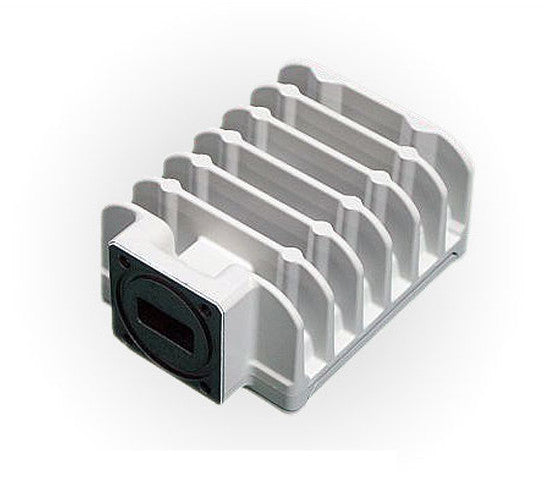

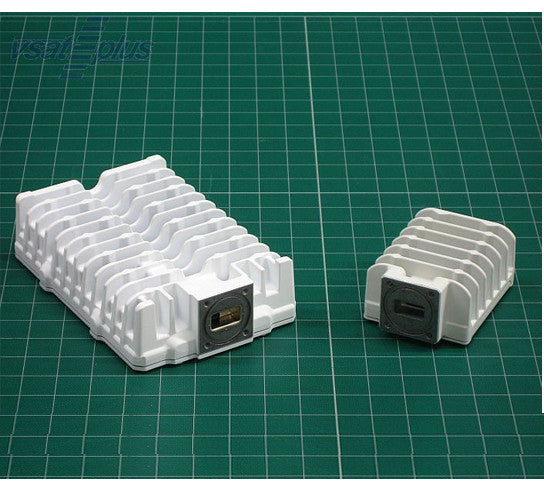

New Japan Radio NJT8301N 1.5W Standard Ku-Band BUC
New Japan Radio NJT8301N 1.5W Standard Ku-Band BUC
SKU: NJT8301N
Couldn't load pickup availability
NJRC NJT8301N 1.5W KU-BAND (14.0 TO 14.5 GHZ) BUC
- RF Frequency: 14.0 to 14.5 GHz (Standard Ku-Band)
- Output Interface: Waveguide, WR75 with Groove
- Input Interface: N-type, female (50 ohm)
- Output Power @ 1dB G.C.P.: +31 dBm min. over temperature
- Linear Gain: 55 dB typ., 48 dB min.
- Power Requirement: DC Power, +24 V (Range: +12 to +30 V)
- Power Consumption:
- 12 W typ., 14 W max. @ Pout = +31 dBm
- 11 W max. @ No IF and +25 °C
- 2 W max. @ 10 MHz Reference Off (Mute on)
- Weight: 350 g [0.77 lbs]
- High Efficiency Output Power (P1dB):
- +31.0 dBm min. over temperature
- Lower Power Consumption
- Small Size & Light Weight
- LED Indicator Equipped
- RoHS Compliance
Outline Dimensions
|
TYPICAL SPECIFICATIONS |
|
| RF Frequency | 14.0 to 14.5 GHz (Standard Ku-Band) |
|
Output Interface |
Waveguide, WR75 with Groove |
|
Input Interface |
N-type, female (50 ohm) |
|
Output Power @ 1dB G.C.P. |
+31 dBm min. over temperature |
|
Linear Gain |
55 dB typ., 48 dB min. |
|
ACPR |
-26 dBc typ. @ Pout = +31 dBm |
| Requirement for External Reference ▼ | |
|
Frequency |
10 MHz (sine-wave) |
|
Input Power |
-5 to +5 dBm @ Input port |
|
Phase Noise |
|
| @ 100 Hz | -125 dBc/Hz max. |
| @ 1 kHz | -135 dBc/Hz max. |
| @ 10 kHz | -140 dBc/Hz max. |
|
L.O. Phase Noise |
|
| @ 100 Hz | -60 dBc/Hz max. |
| @ 1 kHz | -70 dBc/Hz max. |
| @ 10 kHz | -80 dBc/Hz max. |
| @ 100 kHz | -90 dBc/Hz max. |
| @ 1 MHz | -100 dBc/Hz max. |
|
|
|
|
Receive Band Noise Density |
156 dBm/Hz max. @ 10.95 to 12.75 GHz |
|
Input V.S.W.R. |
2 : 1 max. |
|
Output V.S.W.R. |
2 : 1 max. |
|
Power Requirement |
DC Power, +24 V (Range: +12 to +30 V) |
|
Power Consumption |
12 W typ., 14 W max. @ Pout = +31 dBm |
|
|
11 W max. @ No IF and +25 °C |
|
|
2 W max. @ 10 MHz Reference Off (Mute on) |
|
Mute |
Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal |
| Mechanical & Environmental ▼ | |
|
Temperature Range (ambient) |
Operating: -40 to +55 °C |
|
Humidity |
0 to 100 % |
|
Altitude |
15,000 feet [4572 m] |
|
Dimension & Housing |
91.55 (L) x 68 (W) x 42.5 (H) mm [3.60” (L) x 2.68” (W) x 1.67” (H)] without interface connector |
|
Weight |
350 g [0.77 lbs] |
