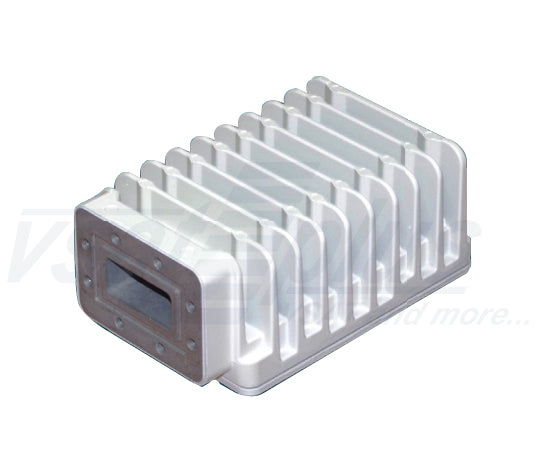

New Japan Radio NJT8102WF Compact 2W Full C-Band BUC
New Japan Radio NJT8102WF Compact 2W Full C-Band BUC
Sale
Sold out
Couldn't load pickup availability
NJRC NJT8102WF 2W Full C-Band BUC
Features
- Output Frequency Range: 5.85 - 6.725 GHz
- L.O. Frequency: 4.90 GHz
- IF Frequency: 950 - 1825 MHz
- Output Power @P1dB: +33.0 dBm min over temp
- DC Power Input: 24V (+12 - 30V)
- Input Connector: F-Type
- Weight: 1.8 lbs (800g)
| Item | Specifications |
|---|---|
| Output Interface | Waveguide, CPR137 (with Groove) |
| Input Interface | N-type, female (50 ohm)
[Model No.: NJT8102N / NJT8102WN]
|
| F-type, female (75 ohm)
[Model No.: NJT8102F / NJT8102WF]
|
|
| Output Power @ 1dB G.C.P. | +33 dBm min. over temperature |
| Linear Gain | 58 dB nom., 52 dB min. |
| Power Requirement | +24 VDC (+12 to +30 VDC) |
| Power Consumption | 18 W typ. @ Pout = +33.0 dBm |
| Weight | 800 g [1.8 lbs] |
