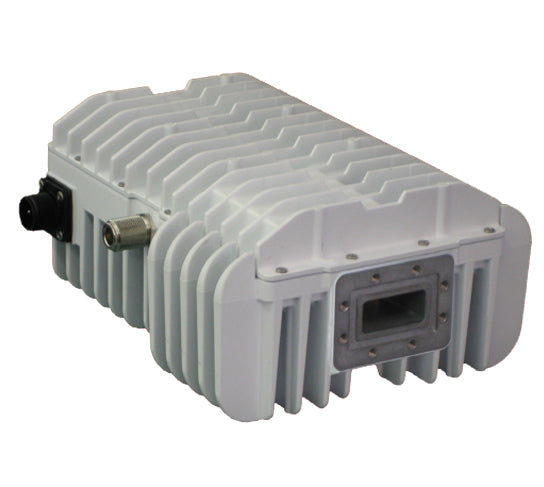

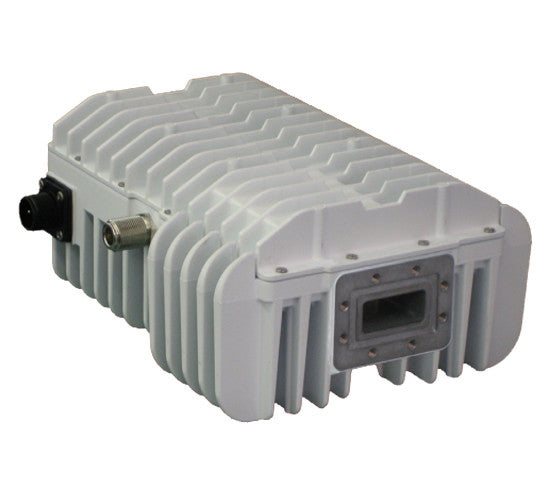

New Japan Radio NJT5763F 10W Full C-Band BUC

Name: New Japan Radio NJT5763F 10W Full C-Band BUC
Brand: New Japan Radio
SKU: NJT5763F
Price: 1750.0 USD
Availability: InStock

Sale Sold out

Power Supply IF POWERED BUC Only MS Powered BUC Only IF Powered BUC + Power Supply MS Powered BUC + Power Supply

Product variants

Quantity

SKU: NJT5763F

Input Frequency: 5.85 to 6.725 GHz

Small form factor

Input Connector: F-Type Female

Output Connector: CPR 137 waveguide with groove

High Efficiency & Low Distortion:

P1dB: +40 dBm min. over temperature

IM3: -28 dBc @ Pout = +37 dBm

Power Consumption: 85W max

Wide Operating Range

Voltage Range: +18 to +60 VDC

Compact Size & Light Weight

Weight: 3.2 kg

LED Indicator

ROHS Compliance

NJT5763F Specifications
RF Frequency	5.85-6.725 GHz (Full C-Band)
Local Frequency	4.90 GHz
IF Frequency	950-1825 Ghz
Output Power @P1dB	10W Linear (+40 dBm min)
General Specifications
Output Interface	Waveguide, CPR137 (with Groove)
Input Interface	F-type Female
Output Power @ 1 dB G.C.P.	+40 dBm min. over temperature
Linear Gain	64 dB nom. 58 dB min.
IM3	-24 dBc typ. @ total power <= +40 dBm – 3 dB T.B.D.
Requirement for External Reference
Frequency	10 MHz (sine-wave)
Input Power	-5 to +5 dBm @ Input Port
Phase Noise	-125 dBc/Hz max. @ 100 Hz -135 dBc/Hz max. @ 1 kHz -140 dBc/Hz max. @ 10 kHz
L.O. Phase Noise @ 100 Hz @ 1 kHz @ 10 kHz @ 100 kHz	-60 dBc/Hz max -70 dBc/Hz max -80 dBc/Hz max -90 dBc/Hz max
Receive Band Noise Density	-87 dBm/4kHz max @3.625 to 4.200 GHz
Input V.S.W.R.	2.0 : 1 max
Output V.S.W.R.	2.0 : 1 max
Power Requirement	+24 VDC / 48 VDC (+18 to +60 VDC)
Power Consumption	85 W max. @ Pout = +40 dBm T.B.D.
Mute	Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal.
LED Indicator	GREEN: L.O. locked / RED: L.O. unlocked or no 10 MHz reference signal
Temperature Range (ambient) Operating Storage	-40 to +55 C -40 to +75 C
Dimensions (L x W x H)	219.5 mm x 175 mm x 99 mm (8.64" x 6.89" x 3.90")
Weight	3.2 kg (7.0 lbs)
