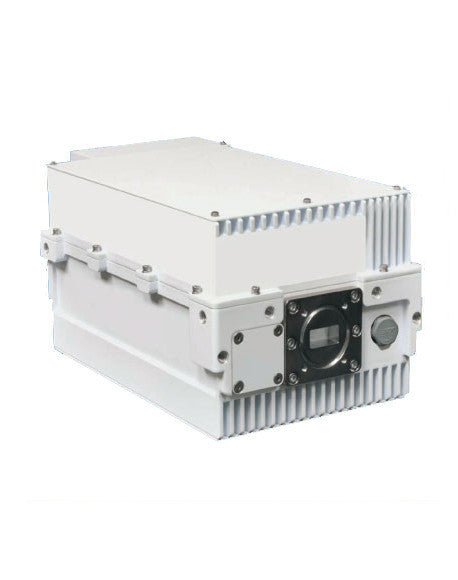

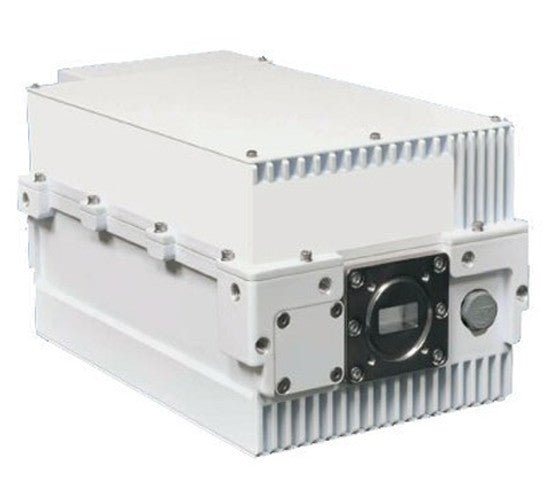

New Japan Radio NJT5323N 25W Standard Ku-Band BUC

Name: New Japan Radio NJT5323N 25W Standard Ku-Band BUC
Brand: New Japan Radio
SKU: NJT5323N-DC
Availability: InStock

Sale Sold out

Power Supply DC power AC power AC/DC Box

Product variants

Quantity

SKU: NJT5323N-DC

LINE UP

OUTLINE DRAWING

Technical Details
	Transmitter Watt:	25 Watt
	TX Frequency Range:	14.0-14.5 Ghz - Regular KU
	Local Oszillator Frequency (LO):	13.05 Ghz Regular KU TX
	IF Frequency:	950 to 1450 Mhz High Band
	Output Power dBm:	44
	Connector Type:	N-Type
	Power Consumption max.:	DC Power: 185 Watt, AC Power: 215 Watt
	Waveguide TX Flange:	WR-75 - KU Band
	Dimensions mm:	262.2x137.7x114.3 AC/DC Box: 231.9x137.7x88.9
