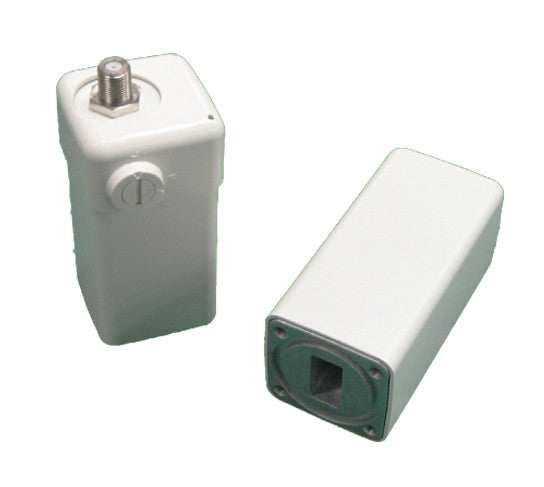

New Japan Radio NJR2843LN Universal Ku-band 2LO PLL LNB

New Japan Radio NJR2843LN Universal Ku-band 2LO PLL LNB

Request for a quote

SKU: NJR2843LN

NJRC NJR2843LN Universal Ku-Band 2LO PLL LNB

  • Switchable Local Frequency: 9.75 / 10.6 GHz, via Input Voltage (High/Low).
  • Full Ku-Band coverage: 10.70 - 11.70 GHz / 11.70 - 12.75 GHz.
  • IF Frequencies: 950 to 1950 MHz / 1100 to 2150 MHz,
  • Internal Reference (Local Stability±487.50 kHz / ±530 kHz).
  • IF connector: N-Type Male

    NJR284x Outline Drawing
    New Japan Radio NJR2841L/42L/43L Universal Ku-Band 2LO PLL LNB - Int. Ref.

    NJR2843L Specifications
    Input Interface WR-75 with groove
    Output Interface N-type, Male (50 ohm)
    Noise Figure 0.8 dB typical, 1.0 dB max.
    Linear Gain (at 25C) 48 dB min, 62 dB max.
    L.O. Phase Noise -50 dBc/Hz @ 100 Hz
    -70 dBc/Hz @ 1 kHz
    -75 dBc/Hz typ. @ 10 kHz
    -85 dBc/Hz typ. @ 100 kHz
    L.O. Leakage Level -40 dBm max. at the IF output connector
    -60 dBm max. at the RF input flange
    Spurious a)-120 dBm max.
    At input, fixed frequency spurious, unrelated to test CW signal. (Measured at specified IF band)
    b)-40 dBc max.
    With test CW signal -10 dBm IF output (measured at specified IF band)
    Input VSWR 2.5:1 typ.
    Output VSWR 2.3:1 max.
    Power Requirement +24 VDC (+10 to +24 VDC)
    Current Drain 200 mA max
    Temperature Range (ambient)
        Operating
        Storage
    -40 to +60° C
    -40 to +80° C
    Size 83.4 mm (L) x 42 mm (W) x 42 mm (H)
    (3.24" (L) x 1.57" (W) x 1.57" (H))
    Weight 210 g [0.46 lbs]
