New Japan Radio NJR2839H Series PLL Ku-Band LNB
New Japan Radio NJR2839H Series PLL Ku-Band LNB
Sale
Sold out
SKU: NJR2837HN
Couldn't load pickup availability

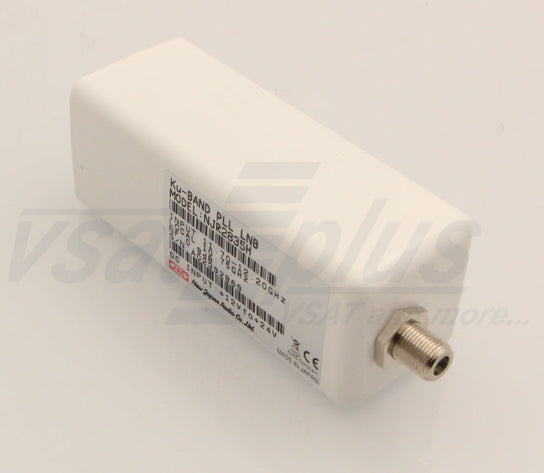

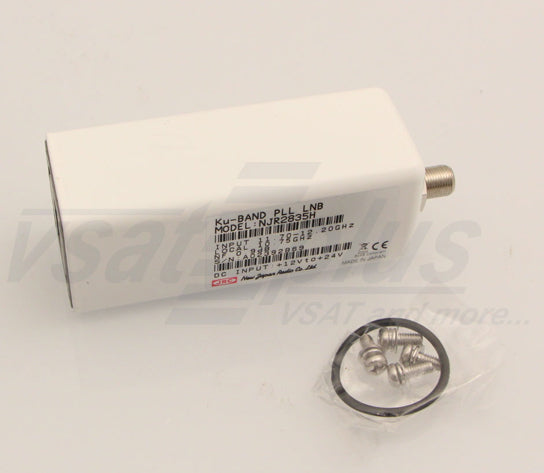

NJRC NJR2839HN Ku-Band PLL LNB
- 11.20 to 11.70 GHz Input Frequency
- 0.8 dB Noise Figure
- ±100 kHz LO Stability
- Type F Connector
<| Specifications | |
|---|---|
| RF Frequency | 11.20 to 11.70 GHz |
| Local Frequency | 10.25 GHz |
| Local Stability (-40 to +60°C) |
+/- 10 ppm |
| IF Frequency | 950 to 1,450 MHz |

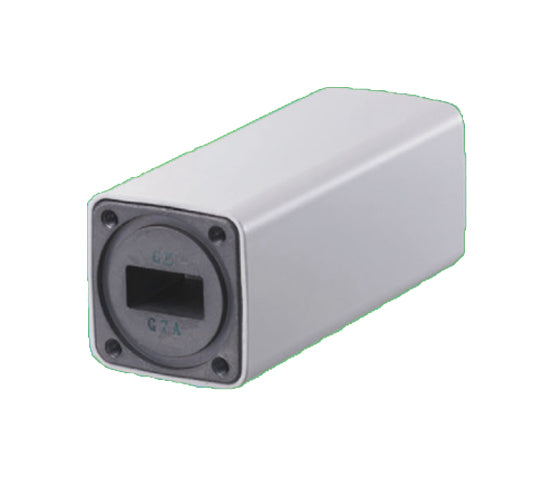

| Input Interface | WR-75 |
| Output Interface | F-type, female (75 ohm) N-type, female (50 ohm) |
| Noise Figure | 0.8 dB |
| Conversion Gain (at 25C) | 60 dB min. |
| Conversion Gain Variation (at 25C) | 2 dB p-p max. In any 50 MHz segment over the frequency band |
| Phase Noise (SSB) | -70 dBc/Hz @ 100 Hz -80 dBc/Hz @ 1 kHz |
| Spurious | -140 dBm max. At input, fixed frequency spurious, unrelated to test CW signal. -50 dBc max. With test CW signal -10 dBm IF output (measured specified IF band) |
| Power Requirement | +15 to +24 V dc |
| Operating Current | 250 mA |
| Operating Temperature | -40 to +60° C |
| Storage Temperature | -40 to +80° C |
| Size | 113.5 mm (L) x 40 mm (W) x 40 mm (H) (4.47" (L) x 1.57" (W) x 1.57" (H)) |
| Weight | 260 g max. [0.57 lbs] |
