iDirect X3 Satellite Router with 3W Universal Ku-Band ODU Bundle
iDirect X3 Satellite Router with 3W Universal Ku-Band ODU Bundle
Sale
Sold out
SKU: X3-BUN
Couldn't load pickup availability

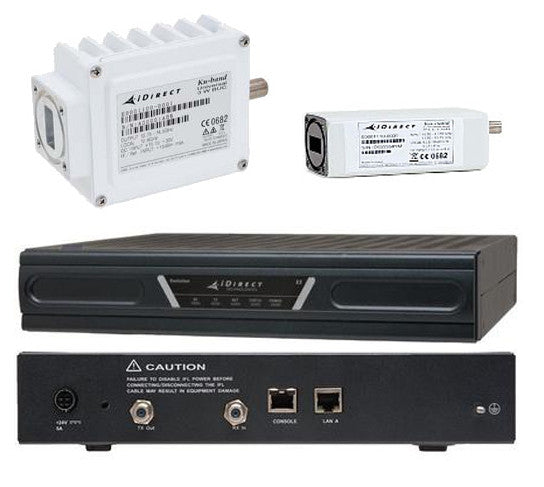

IDIRECT X3 ROUTER AND 3W UNIVERSAL KU-BAND ODU BUNDLE
Reduce the hassle of selecting compatible components for your terminal by purchasing a complete iDirect Router and ODU bundle. Leveraging key industry relationships, VSATplus has created packaged solutions for VSAT that will save you time and money in purchasing and provide reliable, high-speed, high-efficiency, field-proven IP Broadband connectivity for Small to Enterprise Networks.

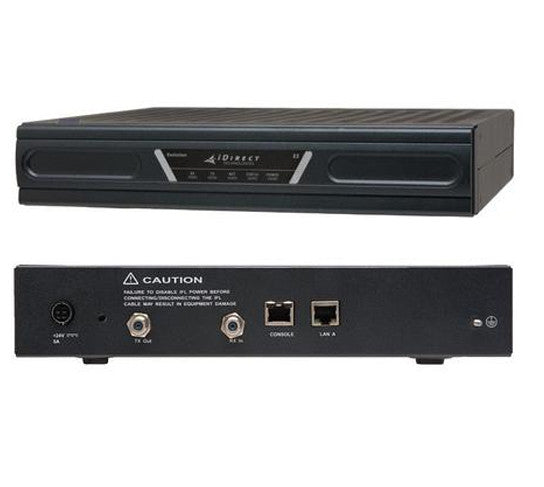

IDIRECT X3 SATELLITE ROUTER
Network Configuration |
|||
| Network Topology | Star (DVB-S2/ACM Outbound + Multi Frequency D-TDMA or SCPC Return*) |
||
| Downstream DVB-S2 | Upstream TDMA | Upstream SCPC Return | |
| Modulation | QPSK, 8PSK, 16APSK | BPSK, QPSK, 8PSK | BPSK, QPSK, 8PSK |
| FEC | LDPC, 1/4 - 8/9 | TPC, 0.431 - 0.793**; 2D 16-State, 1/2 - 6/7 |
2D 16-State, 1/3 - 6/7 |
| Max. Symbol Rate | 45 Msps | 7.5 Msps | 15 Msps |
| Max. Info Rate | 150 Mbps | 12.8 Mbps | 24 Mbps |
| Max. Line Card IP Data Rate | 149 Mbps | 11.1 Mbps | 18.2 Mbps |
| Max. Remote IP Data Rate | 29 Mbps | 7.8 Mbps | 11.8 Mbps |
| Max. Remote IP Data Rate | 29 Mbps | 7.8 Mbps | 11.8 Mbps |
Interfaces |
|||
| Satcom Interfaces | |||
| TxIF | Type-F, 950–1700MHz, Composite Power +7dBm / -35dBm |
||
| RxIF | Type-F, 950–2150MHz, Composite Power -5dBm / -65dBm |
||
| Available BUC Power (IFL) | +24V, max. 70W, (120W PSU) (please refer to X3 Installation Manual for full list of supported BUCs) |
||
| Available LNB Power (IFL) | +19.0V (Nominal) / +14V (Nominal), 300mA (DiSEqC) 22KHz DiSEqC tone |
||
| 10 MHz Reference | Software controllable on Tx and Rx IF ports | ||
| Data Interfaces LAN RS-232 |
10/100 Ethernet, 802.1q VLAN RJ45 (Console connection) |
||
| Protocols Supported | TCP, UDP, ACL, ICMP, IGMP, RIP Ver2, Static Routes, NAT, DHCP, DHCP Helper, Local DNS Caching, cRTP and GRE |
||
| Traffic Engineering | Group QoS, QoS (Priority Queuing and CBWFQ), Strict Priority Queuing, Application Based QoS, Minimum CIR, CIR (Static and Dynamic), Rate Limiting |
||
| Other Features | Built-in Automatic Uplink Power, Frequency and Timing Control, Authentication, AES-256 encryption |
||
Mechanical / Environmental |
|||
| Size (W x D x H) | 11.5 in (29.2 cm) x 9.9 in (25.1 cm) x 2 in (5.1cm) | ||
| Operating Temperature | 0° to +45°C (32° to +113°F) at Sea Level with temperature gradient of 5°C per 10mins |
||
| Humidity Max | 90% non-condensing humidity | ||
| Input Voltage | 100–240 VAC Single Phase, 50–60 Hz, 2A max at 90 VAC, 1A max at 240 VAC |
||
|
Radio Standards EN 301-428 v1.3.1 EN 301-443 v1.3.1 |
Ku-Band System Level Specification C-Band System Level Specification |
||
| Safety Standards | Complies with IEC 60950, EN 60950-1, UL 60950-1, CSA C22.2 No.60950-1-03 |
||
| Emission Standard | Complies with EN 55022 Class B, FCC Part 15 Class B, CISPR 22 Class B, EN 61000-3-2, EN 61000-3-3 |
||
| EMC/Immunity Standard | Complies with EN 55024, EN 301-489-1, EN 301-489-12, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
||
| Certification | FCC, CE, and RoHS Compliant |
IDIRECT 3W UNIVERSAL KU-BAND BUC
| Electrical | |
|---|---|
| Output Frequency Range | 13.75 to 14.5 GHz |
| Input Frequency Range | 950 to 1,700 MHz |
| Conversion Type | Single, fixed L.O. |
| L.O. Frequency | 12.80 GHz |
| Output Power @ 1dB G.C.P. | +34.5 dBm min. @ +25C; +34 dBm min. over temp. |
| Linear Gain | 58 dB typ., 51 dB min. |
| ACPR | -26 dBc typ. @ Pout = +34 dBm |
| Requirement for External Reference | |
| Frequency | 10 MHz (sine-wave) |
| Input Power | -5 to +5 dBm @ Input port |
| Phase Noise | -125 dBc/Hz max. @ 100 Hz -135 dBc/Hz max. @ 1 kHz -140 dBc/Hz max. @ 10 kHz |
| L.O. Phase Noise (SSB) | -60 dBc/Hz max. @ 100 Hz -70 dBc/Hz max. @ 1 kHz -80 dBc/Hz max. @ 10 kHz -90 dBc/Hz max. @ 100 kHz -100 dBc/Hz max. @ 1MHz |
| Spurious In band In receive band Out-of-band |
-50 dBc max. @ 13.75 to 14.5 GHz -70 dBm max. @ 10.95 to 12.75 GHz -50 dBc max. |
| Input Impedance | 75 ohms nominal |
| Input V.S.W.R. | 2 : 1 max. |
| Output V.S.W.R. | 2 : 1 max. |
| DC Power Requirement | |
| Voltage Range | +24 VDC (+15 to +30 VDC) |
| Power Consumption | 22 W max. @ Pout = +34 dBm; 15 W max. @ No IF, +25 C; 25 W max. @ Saturation |
| Mechanical | |
| Input Interface | F-type, female |
