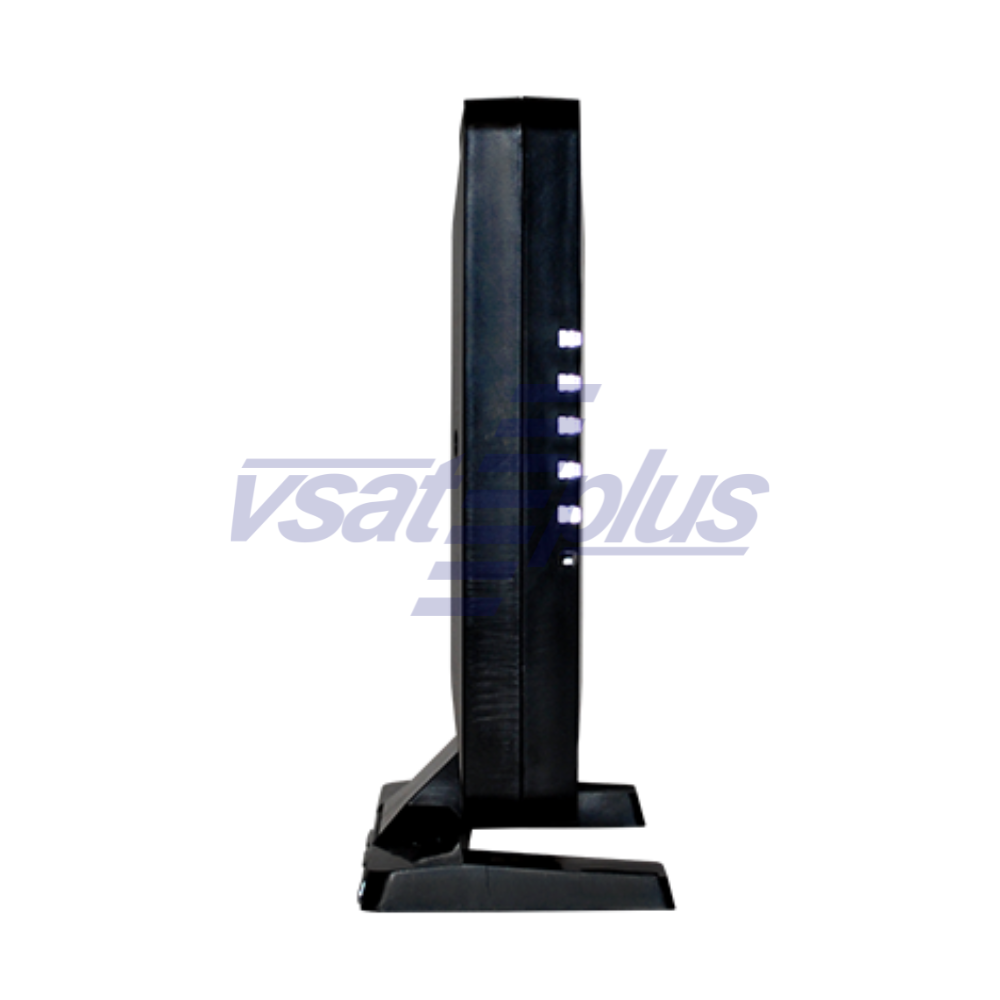

iDirect/ST Engineering MDM2210 Satellite Modem
iDirect/ST Engineering MDM2210 Satellite Modem
Couldn't load pickup availability
The MDM2210 IP Satellite Modem is a wideband DVB-S2X two-way, high throughput modem. It is combined with a range of different antenna sizes and interactive LNBs forming a cost-effective satellite terminal on the Dialog platform.
The Newtec Dialog modem series consist of two-way, high throughput DVB-S2X modems that meet any application across a broad array of markets. The modems share a wide range of key features and can be easily mixed in a single satellite network on the multi-service Dialog platform. The series is extremely flexible supporting DVB-S2X forward and featuring the high throughput, flexible MF-TDMA returns. Dialog modems guarentee high efficiancy and availability.
The MDM2210 is a compact, lightweight desktop modem with very low power consumption. The MDM2210 is bundled with a range of different antenna sizes and interactive LNBs forming an affordable satellite terminal on the Dialog platform. Its ease of installation and high performance modulation techniques enable network operators to offer IP broadband services in a cost-effective way.
Features of the MDM2210
- DVB-S2X support up to 500 Msps in the forward link
- High throughput, up to 100/5 Mbps, 10 Mbps
- Optional Wi-Fi and advanced routing support
- Support for single cable outdoor units
- Unique Point&Play easy-installation capability
- Easy to use multilingual web GUI for installation, diagnostics and troubleshooting
- Adaptive return link based on different MF-TDMA modulations/coding and multiple channel bandwidths
Network Configuration
|
Network Topology |
Rx |
Tx |
| DVB-S2/DVB-S2X | MF-TDMA | |
| Modulation | QPSK, 8PSK, 16APSK, 32APSK, 64APSK |
4CPM |
| Symbol Rates | 3.6 Msps to 500 Msps | Up to 7.6 Msps |
Modem Interfaces
Tx Interface
| Connector | F-Type 75 Ohm |
| Frequency range | 2750-3000 MHz |
| TX level | 0 dBm |
Rx Interface
| Connector | F-Type 75 Ohm |
| Frequency | 950-2150 MHz |
Data Interface
| LAN: Four 10/100/1000 Mbps Ethernet, auto MDI/MDIX |
| OPTIONAL WI-FI: 802.11 b/g/n, 2.4 GHz |
Future Use
| MicroSD | mass storage option MicroSD cards |
Management Interface
| I/O header, 20 pin connector (includes reset function) |
| Power & Status signaing connector (14 pin) |
Management
Protocols Supported
| UDP, IPv4 & IPv6, ICMP, TCP, IGMPv1, IGMPv2, ARP, DHCP, DNS, NTP, BGP, NAT, Diffserv Marking |
Multilingual Web GUI
| Manage web GUI via configurable management IP address |
Mechanical and Environmental
| Housing |
W 18.6 cm x D 15.3 cm x H 1.8 cm |
| Weight | 0.475 kg (1.05 lbs) |
| Temperature: |
| Operating | 0° to +40°C (32° to +104°F) |
| Storage | -10° to +60°C (14° to +140°F) |
| Humidity |
| Operating | 5 - 95% non-condensing |
Power Supply
| Input Voltage |
50Hz\210-260 V, 60Hz\100-130 V |
| Mains Power Consumption | <30 W (0.8 W Ku iLNB) |
| Modem Power Consumption | <60 W (2 W iLNB) |
