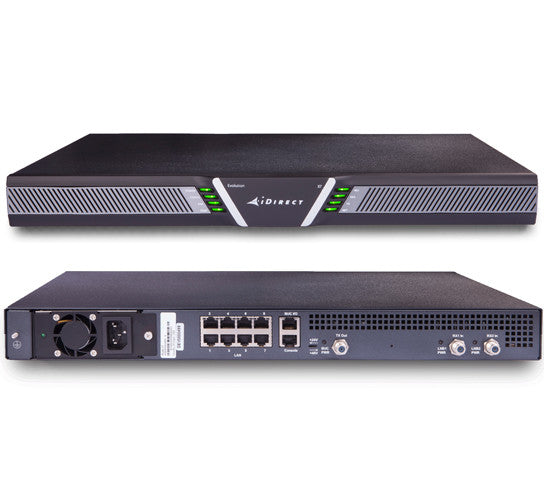

iDirect EVOLUTION X7 Satellite Remote Router Modem
iDirect EVOLUTION X7 Satellite Remote Router Modem
Couldn't load pickup availability
IDIRECT X7 FEATURES
- Up to 100 Mbps of combined inbound and outbound throughput
- 1 RU high remote chassis fitting in standard telecom racks
- Licensable 2nd demodulator for multicast traffic
- Variant power supply module configurations
- Dual image support and Web iSite for ease of deployment and upgrades
- Communications-on-the-Move (COTM) support
- AES Encryption
IDIRECT X7 SATELLITE ROUTER
The Evolution X7 remote is the first of iDirect’s next-generation family of remotes. Built on an entirely new multi-core hardware system, the X7 is optimized to deliver best-in-class DVB-S2/ACM and A-TDMA throughput performance. The X7 also features SCPC on the return and an 8-port embedded switch for managing multiple user groups. The rack-mountable remote comes with multiple choices of embedded power supply units and dual DVB-S2 demodulators with fully independent RF chains. This makes it uniquely suited for a range of enterprise voice and data services while simultaneously receiving multicast channels over the same or a second transponder or satellite – even combining spot-beam HTS capacity and Ku- and C-Band capacity.
Network Configuration |
|||
| Network Topology | Star | ||
| Downstream DVB-S2 | Upstream TDMA | ||
| Modulation | QPSK, 8PSK, 16APSK | BPSK, QPSK, 8PSK | |
| FEC | LDPC, 1/4 - 8/9 | 2D 16-State, 1/2 - 6/7 | |
| Max. Symbol Rate | 1 - 45 Msps | 128 ksps - 7.5 Msps | |
| Max. Info Rate | 149.7 Mbps | 19.2 Mbps | |
| Max. IP Data Rate | 59.2 Mbps | 16 Mbps | |
| Spread Spectrum (Max Rate Mcps) |
Up to 7.5 Mcps Spreading Factors: 2, 4, 8 |
||
| Max rates are achieved under optimal conditions. | |||
Interfaces |
|||
| Satcom Interfaces | |||
| TxIF | Type-F, 950 – 1700MHz, Composite Power +3dBm / -35dBm |
||
| Rx1/Rx2 IF | Type-F, 950 – 2150MHz, , -5dBm (max) composite / -130+10*Log10(Sym rate) dBm (min) single carrier |
||
| Available BUC Power (IFL) | +24V, 118W max available @ connector +48V, 158W max available @ connector (optional) |
||
| Available LNB Power (IFL) | +19V (Nominal), 22KHz DiSEqC tone Rx1/Rx2 In: 13-18V @ 0.5A |
||
| Data Interfaces | LAN: 8-port ethernet switch, 10/100, 802.1q VLAN RS-232: RJ45 (Console connection), RS-422: RJ45 BUC I/O port (future release) |
||
| Security | AES Link Encryption (256-bit) (optional) | ||
| Protocols Supported | TCP, UDP, ACL, ICMP, IGMP, RIP Ver2, Static Routes, NAT, DHCP, DHCP Helper, Local DNS Caching, OpenAMIP, cRTP and GRE |
||
| Traffic Engineering | Group QoS, QoS (Priority Queuing and CBWFQ), Strict Priority Queuing, Application Based QoS, Minimum CIR, CIR (Static and Dynamic), Rate Limiting |
||
| Other Features | Transmit Key Line* | ||
Mechanical / Environmental |
|||
| Size (W x D x H) | W 17.5 in (44.5 cm) x D 12 in (30.5 cm) x H 1.75 in (4.45 cm) | ||
| Weight | 10 lbs (4.54 kg) | ||
| Operating Temperature | 0° to +50°C (32° to +122°F) at Sea Level with temperature gradient of 1°C per 1 min |
||
| Humidity Max | 90% non-condensing humidity | ||
| Input Voltage | 100–240 VAC, Auto-Ranging; ±36-76VDC (±48 VDC nominal) (optional) |
||
| Radio Standards EN 301-428 v1.3.1 EN 301-443 v1.3.1 EN 301-459 v1.4.1 |
Ku-Band System Level Specification C-Band System Level Specification Ka-Band System Level Specification |
||
| Safety Standards | Complies with IEC 60950, EN 60950-1, UL 60950-1, CSA C22.2 No.60950-1-03 |
||
| Emission Standard | Complies with EN 55022 Class B, FCC Part 15 Class B, CISPR 22 Class B, EN 61000-3-2, EN 61000-3-3 |
||
| EMC/Immunity Standard | Complies with EN 55024, EN 301-489-1, EN 301-489-12, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
||
| Certification | FCC, CE, and RoHS Compliant |
