Hughes HL1120W LEO Terminal
Hughes HL1120W LEO Terminal
Couldn't load pickup availability

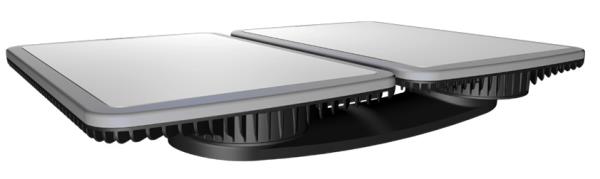

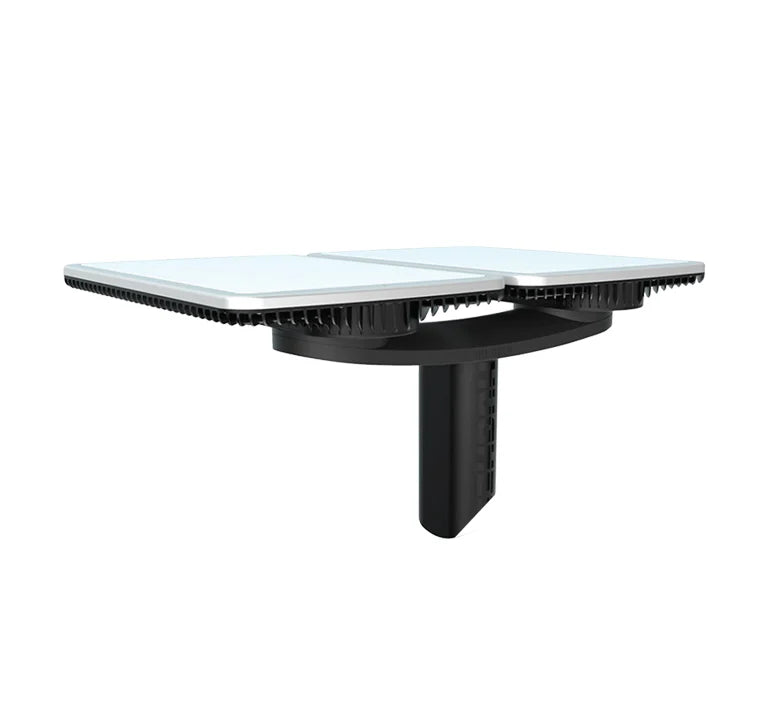

The HL1120W LEO Terminal from Hughes is a compact, all-in-one connectivity solution built for OneWeb's Ku-band Low Earth Orbit (LEO) satellite network. Designed with an Electronically Steered Antenna (ESA) and a self-aligning system, this unit delivers high-speed, low-latency broadband ideal for mobile, remote, and off-grid operations.
Whether it's a mining site, emergency vehicle, field office, or rural business — the HL1120W brings reliable, plug-and-play internet to any location.
✅ Key Features
-
📡 OneWeb Ku-band LEO compatibility
-
⚙️ Self-aligning ESA antenna – no moving parts, no manual pointing
-
🚀 High-Speed: 195 Mbps down / 32 Mbps up
-
🌐 Optional Wi-Fi 6 router built-in
-
💼 Dual Gigabit Ethernet ports
-
🧊 Operates in extreme climates: -40°C to +55°C
-
🔌 Easy AC-powered setup with 30m cable length
-
💪 Rugged aluminum chassis, IP-rated enclosure
📊 Technical Snapshot
| Feature | Spec |
|---|---|
| Frequency Range | TX: 14.0–14.5 GHz / RX: 10.7–12.7 GHz |
| Data Speeds | 195 Mbps down / 32 Mbps up |
| G/T | Up to 11.3 dBK |
| Dimensions | 59.8 x 82.7 x 11.1 cm |
| Weight | 24 kg (53 lbs) |
| Ethernet Ports | 2x RJ45 Gigabit LAN |
| Wi-Fi Option | Dual-band Wi-Fi 6 router (optional) |
| Power | 100–240V AC |
🛒 Order Now from VSATPlus
We provide full configuration, support, and fast delivery.
The HL1120W user terminal includes the following indoor unit (IDU).

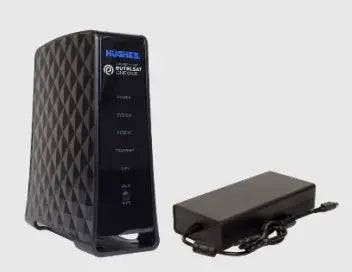

HL1120W IDU: Wi-Fi 6 router with two GigE LAN ports, MoCA adapter for ethernet over coax and external power supply.
Hughes_LEO_HL1120W_Terminal Data Sheet Hughes-LEO-HL1120W-Quick-Start-Guide Hughes-LEO-HL1120W-UT-Installation-Guide
