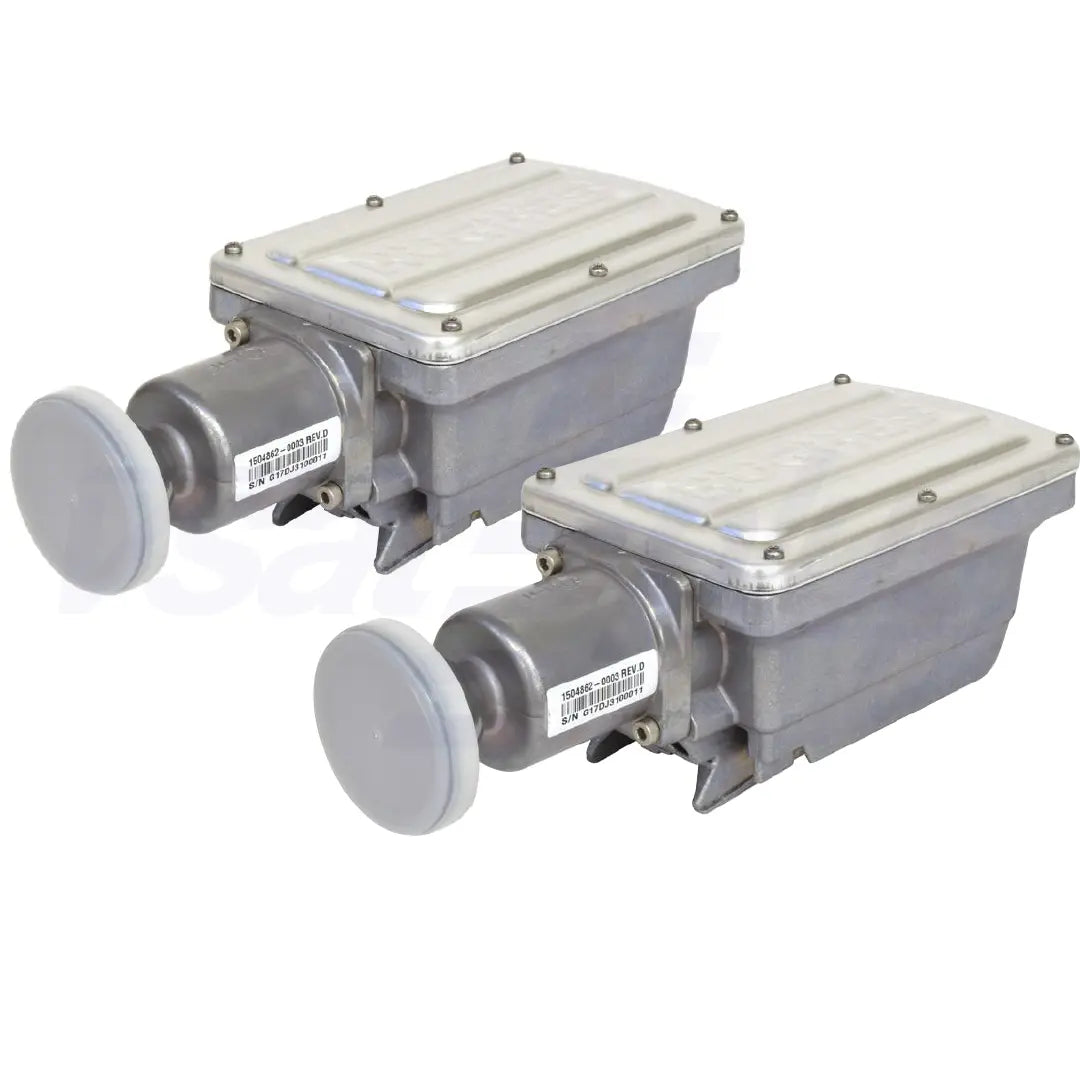

Hughes JUPITER HB210 2W Transceiver
Hughes JUPITER HB210 2W Transceiver
Couldn't load pickup availability
HT Very Small Aperture Terminal (VSAT)
The state-of-the-art Hughes JUPITER™ System consisting of the HT2010, HT2010W IDU, and HB210/HB220 ODU is a high-performance, broadband satellite modem designed to cost-effectively satisfy a wide range of high-speed connectivity requirements for consumer, small office/home office, enterprise, and government markets. The HT VSAT system consists of an indoor unit, and radio assembly, which mounts on a range of antennas.
Controlled and powered by the JUPITER System HT satellite router through a single IFL cable (integrated transmit, receive-LNB plus OMT), the HT VSAT system provides many sophisticated features to simplify installation and make the most efficient use of satellite capacity. With frequency assignment from the JUPITER gateway supports TX frequency range 29.5 to 30 GHz. Feedback from the gateway to the HT VSAT TX power is dynamically maintained for optimum performance.
Technical Specifications
HB210 Outdoor Unit (ODU)
- Model: HB210-L, HB210-R
- TX frequency: 29.5 to 30 GHz
- RX frequency: 17.7 to 20.2 GHz
- Input DC voltage: +12 to +55 V
- ODU transmit power: 32.5 dBm max.
- DC power consumption: 21 W max.
- Operating mode: Linear
- Polarization: Circular cross pol, set manually
- Operating temperature: -40° C to + 50° C
- Agency compliance: CE R&TTE and FCC
- Safety compliance: UL, CE, and IEC
| Antenna Size | Typical EIRP (dBW) |
Typical G/T (dB/k) |
| 74 cm | 45.0 | 18.6 |
| 90 cm | 46.2 | 20.0 |
| 98 cm | 46.8 | 20.6 |
| 120 cm | 49.2 | 22.3 |
Indoor Unit (IDU) Forward Channel
- DVB-S2X with Adaptive Coding and Modulation (ACM)
- Frequency: Ka-band or Ku-band
- Modulation: QPSK, 8PSK, 16APSK, 32APSK
- Encapsulation: GSE
- Symbol rates: Up to 235 Msps
Indoor Unit (IDU) Return Channel
- MF-TDMA
- LDPC FEC with efficient variable block/burst sizes
- OQPSK, QPSK, 8PSK, 16APSK modulation
- Symbol rate from 256 ksps to 12 Msps
Power Supply
- External with detachable cord
- AC input voltage range: 90–264 VAC
- Input frequency range: 47–63 Hz
Other
- Antennas: 74 cm, 90 cm, 98 cm, or 120 cm
- IFL cable type and length: Single RG-6, 75 ohms, F-type connector, up to 225’ (70m)
Regulatory
- Safety: UL/CSA/EN 60950
- EMC: FCC Part 15 class B, ICES-003
- RoHS-compliant
Technical Specifications
HB220 Outdoor Unit (ODU)
- Model: HB220-L, HB220-R
- TX frequency: 29.5 to 30 GHz
- RX frequency: 17.7 to 20.2 GHz
- Input DC voltage: +12 to +55 V
- ODU transmit power: 34.3 dBm max.
- DC power consumption: 32.0 W max.
- Operating mode: Linear
- Polarization: Circular cross pol, set manually
- Operating temperature: -40° C to + 50° C
- Agency compliance: CE R&TTE and FCC
- Safety compliance: UL, CE, and IEC
| Antenna Size | Typical EIRP (dBW) |
Typical G/T (dB/k) |
| 74 cm | 48.0 | 18.6 |
| 90 cm | 49.2 | 20.0 |
| 98 cm | 49.8 | 20.6 |
| 120 cm | 52.2 | 22.3 |
Indoor Unit (IDU) Forward Channel
- DVB-S2X with Adaptive Coding and Modulation (ACM)
- Frequency: Ka-band or Ku-band
- Modulation: QPSK, 8PSK, 16APSK, 32APSK
- Encapsulation: GSE
- Symbol rates: Up to 235 Msps
Indoor Unit (IDU) Return Channel
- MF-TDMA
- LDPC FEC with efficient variable block/burst sizes
- OQPSK, QPSK, 8PSK, 16APSK modulation
- Symbol rate from 256 ksps to 12 Msps
Power Supply
- External with detachable cord
- AC input voltage range: 90–264 VAC
- Input frequency range: 47–63 Hz
Other
- Antennas: 74 cm, 90 cm, 98 cm, or 120 cm
- IFL cable type and length: Single RG-6, 75 ohms, F-type connector, up to 225’ (70m)
Regulatory
- Safety: UL/CSA/EN 60950
- EMC: FCC Part 15 class B, ICES-003
- RoHS-compliant
