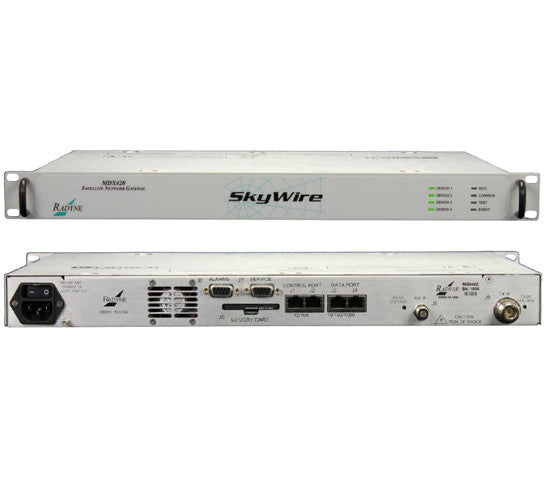

Comtech Skywire MDX-420 Satellite Network Gateway

Comtech Skywire MDX-420 Satellite Network Gateway

Request for a quote

SKU: COM-MDX420

Typical Users
• Oil & Gas
• SNG Operators
• Enterprise
• Government & Military
Common Applications
• IP-Centric Applications
• Full Mesh Data & Voice
• Bandwidth on-Demand Video, Voice & IP
• Communications on- the-Move / Pause

Overview

The revolutionary SkyWire™ MDX420 is one of the most innovative satellite products. The system combines the throughput and robustness of a single channel per carrier (SCPC) system with the bandwidth savings of a time division multiple access (TDMA) system.
The SkyWire MDX420 leverages the benefits of each to provide the ultimate in satellite network performance.
The SkyWire MDX420 is the first TDMA broadband satellite system to eliminate the need for high stability references or an expensive central hub with complicated system software. With its revolutionary single hop bandwidth-on-demand capability, the SkyWire MDX420 minimizes system response time to changes in traffic flow. The small efficient burst sizes and ultra low overhead allow the SkyWire MDX420 to provide unprecedented bandwidth efficiency and increased network throughput.
The SkyWire MDX420 system is easy to configure and the auto-everything 10/100/1000 terrestrial data ports provide instant connectivity for any IP application.

Whether you need a TRUE full mesh, a hub and spoke, or a hybrid combination, the SkyWire MDX420 system provides the most cost-effective, easy to use, bandwidth efficient solution available today. And, the system is packaged in a single, secure, one rack unit box.

Features

  • Most bandwidth-efficient TDMA solution available
  • Connect remote sites in a TRUE full mesh, hub and spoke, or hybrid network configuration
  • TDMA network throughput capability of over 86 Mbps and 168,000 pps
  • Multiple Link / Multiple transponder operation
  • Advanced Turbo Product Code FEC
  • Dynamic bandwidth allocation with single hop bandwidth-on-demand functionality
  • Programmable, multi-queued Quality of Service (QoS)
  • Graphical user interface program for monitor and control

Specifications

The published specifications reflect the maximum SkyWire MDX420 performance. Each SkyWire MDX420 can be configured to customer requirements via hardware / software options applied at the factory or in the field.

SkyWire MDX420 Performance

Acquisition
Performance		 Modulation &
TPC FEC		 User Data
Rate Range		 Network
Threshold		 Typical
BER 1E-8
Enhanced QPSK .710 328 kbps -
12.7 Mbps		 2.9 dB 3.5 dB
Enhanced QPSK .793 328 kbps -
14.2 Mbps		 3.3 dB 3.8 dB
Standard QPSK .793 328 kbps -
14.7 Mbps		 3.4 dB 4.4 dB
Enhanced 8PSK .793 537 kbps -
20.9 Mbps		 6.5 dB 7.6 dB
Standard 8PSK .793 555 kbps -
21.6 Mbps		 6.5 dB 7.6 dB


Modulator

Modulation

QPSK (8PSK optional)

L-Band Tuning Range

950 to 1750 MHz in 1 Hz steps

Impedance

50 Ohm

Connector

N-Type (50 Ohm)

Return Loss

10 dB minimum

Output Power

0 to -25 dBm

Output Accuracy

±1.0 dB over frequency and temperature

Spurious

-55 dBc In-band

-45 dBc Out-of-band

Harmonics

-45 dBc

On/Off Power Ratio

>60 dB

Symbol Rate Range

.256 to 10 Msps in 1 sps steps

FEC

Turbo Product Code .710, .793

Internal Stability

± 280 ppB

± 50 ppB (optional)

Optional BUC Power:

3.3 Amps @ 24 V maximum

2.8 Amps @ 48 V maximum

BUC Reference

10 MHz, +3 dBm ± 3 dB



Demodulator

Demodulation

QPSK (8PSK optional)

L-Band Tuning Range

950 to 2050 MHz in 1 Hz steps

Impedance

75 Ohm

Connector

F-Type (75 Ohm) female

Return Loss

10 dB minimum

Input Level

10 x Log (symbol rate) -122 ± 12 dB

Total Input Power

-10 dBm or +40 dBc (the lesser)

Symbol Rate Range

.256 to 10 Msps in 1 sps steps

FEC

Turbo Product Code .710, .793

Carrier Acquisition Range

± 5% of the symbol rate

LNB DC Power

500 mA @ 24 VDC maximum

LNB Reference

10 MHz, +3 dBm ± 3 dB
