CommScope L4TNM-PSA Connector
CommScope L4TNM-PSA Connector
Couldn't load pickup availability

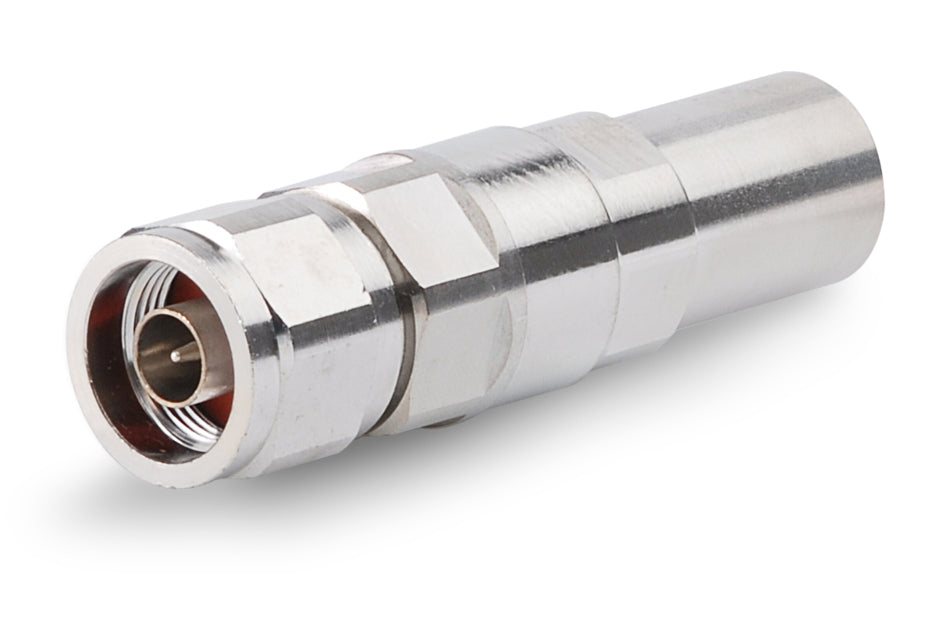

The L4TNM-PSA Type N Male Positive Stop™ Connector is a high-performance RF connector designed by CommScope for seamless integration with 1/2-inch cables, including AL4RPV-50, LDF4-50A, and HL4RPV-50. This connector ensures optimal signal transmission and durability across various applications.
Key Features:
-
Positive Stop™ Mechanism: Allows for full tightening in less than one rotation, ensuring proper installation without the need for special tools.
-
High-Quality Materials: Features a captivated inner contact with silver plating and a ring-flare outer contact with trimetal plating, enhancing conductivity and corrosion resistance.
-
Excellent Electrical Performance: Operates within a frequency range of 0 to 8800 MHz, maintains a 50-ohm impedance, and supports a maximum peak power of 10 kW.
Specifications:
| Specification | Details |
|---|---|
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
| Body Style | Straight |
| Cable Compatibility | AL4RPV-50, LDF4-50A, HL4RPV-50 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Outer Contact Attachment Method | Ring-flare |
| Outer Contact Plating | Trimetal |
| Length | 76.71 mm (3.02 in) |
| Diameter | 22.35 mm (0.88 in) |
| Impedance | 50 ohms |
| Operating Frequency Range | 0 – 8800 MHz |
| Insertion Loss Coefficient | 0.05 |
| Average Power Handling | 0.6 kW @ 900 MHz |
| Peak Power Handling | 10 kW |
| Operating Temperature Range | -55 °C to +85 °C (-67 °F to +185 °F) |
| Compliance | RoHS and REACH-SVHC, ISO 9001:2015 |
Applications:
-
Telecommunications: Ideal for cellular base stations and communication infrastructure requiring reliable RF connections.
-
Broadcasting: Suitable for equipment demanding high-quality signal transmission.
-
Military and Aerospace: Applicable in systems where durable and high-performance connectors are essential.
-
Test and Measurement: Used in equipment requiring precise and reliable RF connections.
For more detailed specifications, please refer to the CommScope L4TNM-PSA Product Page.
To purchase the L4TNM-PSA Type N Male Positive Stop™ Connector, visit VSATPlus.
