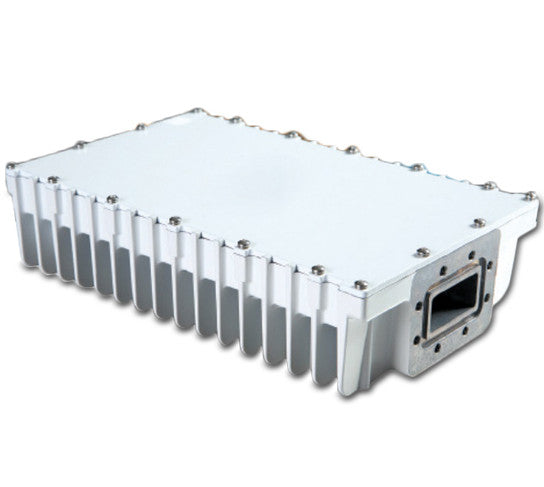

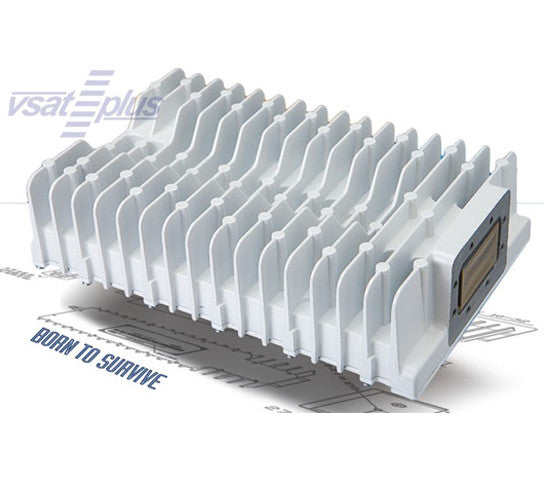

Belcom mBLPA-3 Spark Series 3W Palapa C-Band BUC
Belcom mBLPA-3 Spark Series 3W Palapa C-Band BUC
SKU: mBLPA-3
Couldn't load pickup availability
FEATURES
- Available in Palapa Low-Band
- Output power: 3W
- Complete 2-years Warranty plan
- Guaranteed 21-day repair cycle
- Low power consumption
- Lightweight: 1.85 Kg
Belcom’s SPARK series of low power BUCs have been trusted by the world's largest VSAT companies for over 20 years and
has a proven reputation for reliability Built to be robust and reliable, SPARK BUCs are rugged enough to withstand extreme outdoor conditions. Belcom’s high-level development experience and its large volume manufacturing capabilities, provide clients with unmatched cost savings.
SPARK products are covered by a full two-year warranty and are backed by a dedicated service team that ensures a full
repair cycle within no more than 21 days.
LINE UP
|
Model |
Output Freq. Band (GHz) |
L.O Freq. |
Output Power (W) Min. over Temp |
DC Power Consumption (W) |
Weight (Kg) |
IF Conn. |
|
mBLPA-3-F |
6.365-6.725 |
5290 |
3 |
28 |
1.85 |
F |
|
mBLPA-3-N |
6.365-6.725 |
5290 |
3 |
28 |
1.85 |
N |
| Electrical | |
|---|---|
| Input impedance | 75Ω (50Ω optional) |
| Input VSWR | 2:1 |
| Input freq. | 1075-1435MHz |
| Output freq. | 6.365-6.725GHz |
| L.O freq. | 5.290GHz |
| Output power (at 1 dB GC) | 3W / 34.5 dBm |
| Gain (Nominal) | 55 dB |
| Gain Flatness Over any 1 MHz band Over any 36 MHz band (25°C) Over full band |
±0.2 dB max ±0.6 dB max ±2.0 dB max |
| Gain Stability over temp. (at constant freq.) | 4 dB max |
| Ref. signal - External 10MHz | -3dBm to +7dBm |
| Spectrum sense | Non Inverting (Inverting-Option) |
| Total Frequency Accuracy | Controlled by Reference |
| Phase noise @ 1 kHz offset @ 10 kHz offset @ 100 kHz offset |
75 dBc/Hz 81 dBc/Hz 95 dBc/Hz |
| Leakage and Spurious Signals (Up to 1dB comp. ) In-Band Harmonics In Rx Band Wideband noise in Rx Band 3rd Order intercept point (IP3) |
55 dBc max, -60dBc typ. -20 dBm max -140 dBm/4KHz max -160 dBm/Hz max P1dB+ 7 dB min |
| Stability | The unit will not oscillate under any condition of load, temperature or DC supply. |
| Protection | -Thermal runaway protection -No damage for any combination of load reflections -DC supply spikes protection -Missing 10MHz Ref. shuts transmitter to -60dBc min |
| Power supply voltage (at the input of the BUC) | +15 to +24V DC |
| Mechanical | |
| IF + DC + reference input. | F type (f) (N type optional) |
| RF output | CPR137 Grooved |
| Weight | 4.08 lbs (1.85 kg) |
| Finish | White polyurethane paint |
| Environmental | |
| Operating Temperature | -40°C to +55°C |
| Sealing | Moisture sealing by O-ring Weather-proof |
| Vibration | 5-350Hz 0.0015g2/Hz 350-500Hz -6dB/oct 500Hz 0.00074g2/Hz |
| Shock | 10g @ 10m s(half sine) |
