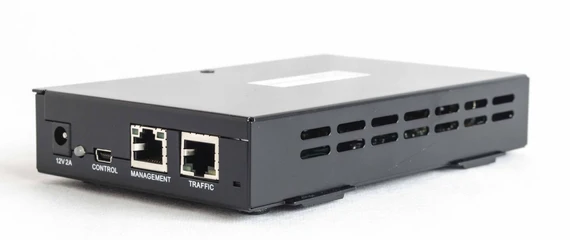

Ayecka TC-1 Stream Transport Stream Converter
Ayecka TC-1 Stream Transport Stream Converter
Couldn't load pickup availability
The TC1 transport stream converter outputs DVB-S2 content to a Gigabit Ethernet network, while delivering metadata on signal quality, lock status, and MODCODs. Its FPGA-based data path ensures full transponder support with minimal latency and no PCR jitter.
The TC1 is suitable for free-to-air TV, storage and archiving (with AYECKA's software), HLS encoder feeds, and monitoring systems. Its high-rate link status-over-UDP feature is ideal for antenna tracking and positioning.
Product Highlights
-
Designed to deliver the highest efficiency for video transmission over satellite.
-
Based on the latest TC1ProX technology, and adds multiple ASI outputs, to support legacy IRD.
-
Outputs the video stream in parallel over ASI and as UDP stream.
Main Applications
-
Video Contribution.
-
Head end in the sky.
-
Video Monitoring.
Product Specifications
-
Modulation QPSK, 8PSK, 16APSK, 32APSK
-
Channel Rate up to 220 Mbps
-
Roll-off factors 0.2, 0.25, 0.35
-
Coding LDPC and BCH decoder as for DVB-S2 requirements
-
Code Rates ½, 3/5, 2/3, ¾, 4/5, 5/6, 8/9, 9/10
-
Framing DVB-S2 framing
-
MODES CCM, VCM, VCM *
-
Input Freq 950-2150MHz
-
Signal Level -35 to -75 dBm
-
Symbol Rates 400Ksps to 45 Msps (Low SR require PLL LNB)
-
Input connector Type F, 75 Ohms.
-
LNB power 14/18V, 22Khz, DiSEqC 2.
