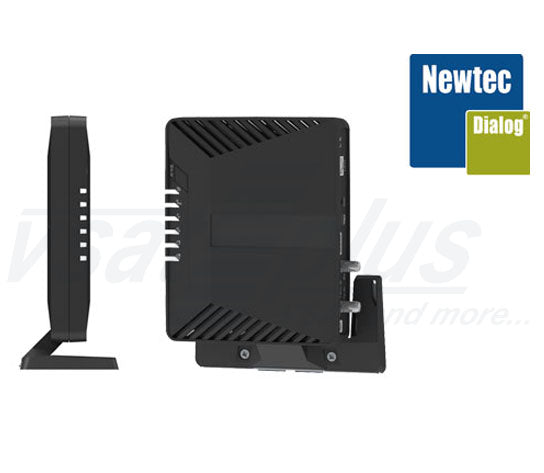

Newtec MDM2210 IP Satellite Modem

Newtec MDM2210 IP Satellite Modem

Request for a quote

SKU: NEW-MDM2210-DIAG

KEY FEATURES

  • Small size, table top or wall mounted
  • DVB-S2 ACM Forward
  • 4CPM MF-TDMA Adaptive Return Link
  • Embedded TCP acceleration and encryption
  • Multi-level Quality of Service
  • Versatile IP routing and addressing
  • Low jitter for real time applications
  • DNS Cache/Relay and HTTP pre-fetching
  • Support of IPv4 and IPv6
  • MicroSD card and USB interface (future use)
  • Over-the-air software upgradeability
  • Over-the-air monitoring and diagnostics tools

Trump cards are its easy installation and efficient modulation techniques enabling network operators to offer IP broadband services in a cost effective way.

Main advantages
  • Low initial investment per user, thanks to a very low terminal cost and unique Point & Play easy - installation capability
  • Easy to use web GUI for installation, diagnostics and troubleshooting
  • Adaptive Return Link based on different 4CPM modulations/coding and multiple channel bandwidths.
  • High service satisfaction ensured through true broadband experience
  • Optimal availability and efficiency of DVB-S2 transmission thanks to Newtec’s technologies FlexACM® and ThiMM
  • Efficiency improvement of 10 to 15% with Newtec’s Clean Channel Technology®

•   Max RX rate UDP             up to 20 Mbps total (unicast or multicast)

•   Max TX rate TCP               up to 3.5 Mbps

•   Max TX rate UDP              up to 3.5 Mbps

Modem Interfaces

RF INPUT/OUTPUT:

•   Connector:                     Two F

•   Impedance:                  75 Ohm

•   RF in Frequency:                950 – 2100MHz (L-band)

•   Rx Level:                        -65 to -25dBm

•   RF out Frequency:             2750 – 3000MHz

•   Tx Level:                           0 dBm

LOCAL AREA CONNECTION     1 x 10/100 TX (RJ-45)

USB                                       USB 2.0 (future use)

MASS STORAGE                      MicroSD card (future use)

Mechanical & Environment

•  Housing                      170x150x32mm

•   Weight                          450 g

•  Operating temperature  0 to 40°C

•   Humidity                       5% - 95% non-condensing

Power supply

•   DC Power supply             18V or 24V (depending on iLNB)

•  Mains adaptor input      mains AC, 50Hz\210-260V and 60Hz\100-130V

•   Power consumption         <30 Watt (0.8W Ku iLNB), <60 Watt (2W iLNB)

IP features

•  Protocols:       UDP, IPv4 & IPv6, ICMP, IGMPv2, TCP, ARP, DHCP, DNS, DiffServ Marking

Management Interfaces

•  Web GUI

•  Over-the-air software & configuration updates

• Over-the-air monitoring, self-test and diagnostics

Software release

• Specifications valid for Sat3Play© software release 2.2

Standards

•  EN 302307     DVB-S2

•  EN 301428   Ku-band VSAT spectrum usage

•  EN 301459   Ka-band VSAT spectrum usage

•  IEEE 802.3    10T Ethernet

•  IEEE 802.3u  100TX Ethernet

Satellite Link Interface

FORWARD CARRIER (RX)

  • Standard                   DVB-S2 ACM
  • Modulation                  QPSK, 8PSK, 16APSK, 32APSK

•   Coding                  1/4, 1/3, 2/5, 1/2,3/5, 2/3,3/4,4/5, 5/6, 8/9, 9/10

•   Roll-off                     5, 10, 15, 20, 25 and 35 %

  • Symbol rate             3.6 - 63 Mbaud (up to 47Mbaud for 16APSK, up to 38Mbaud for 32APSK with 5/6)

RETURN CARRIER (TX)

  • Modulation             4CPM (Quaternary Continuous Phase Modulation) with 6 different modcods, with Adaptive Return Link
  • Access Scheme         Multi Frequency TDMA (Timed Division Multiple Access)

Channel bandwidth 128kHz to 4MHz
