Key Features

  • Star topology
  • High data rates 18 Mbps outbound, 5 Mbps return
  • Low cost of entry
  • Built-in TCP and HTTP acceleration
  • Advanced QoS and prioritization
  • MF-TDMA return channel achieving 98% payload efficiency
  • Automatic End-to-End Uplink Power Control for higher network availability

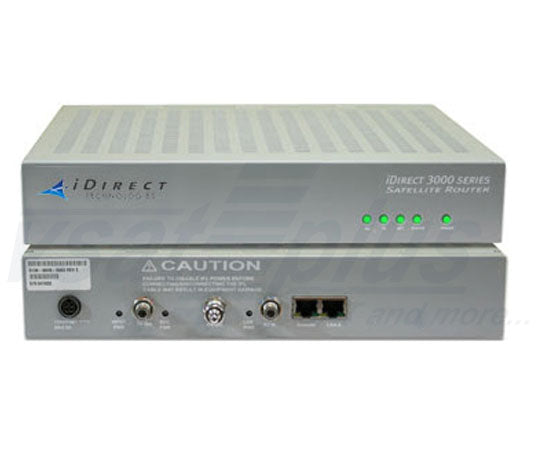

IDirect 3100 Satellite Router

Optimized for remote internet access, the iDirect iNFINITI 3100 Satellite Router is an ideal solution for small to medium enterprise customers with basic remote networking needs.

Delivering Reliable, High-Speed IP Broadband Connectivity for Enterprise Networks

The iNFINITI 3100 supports reliable, two-way IP traffic ideal for high-speed enterprise networking applications including VoIP, internet access, VPN, file transfer, multicasting, and videoconferencing.

The 3000 Series is a star-topology remote satellite router designed as an easy-to-deploy solution that integrates a satellite modem, IP router, TCP acceleration, and advanced QoS and prioritization capabilities. IP over Ethernet makes it easy to integrate the iNfiniti 3000 Series into enterprise networks.

Network Topology
Star (TDM/MF-TDMA)
Modulation
Downstream BPSK, QPSK, 8PSK
Upstream BPSK, QPSK
Maximum Rates
Max Rate
Symbol rate

Info Rate

IP data rate

Downstream (TDM) Upstream (D-TDMA)
Up to 11 Msps
(QPSK, .793 FEC)		 Up to 5 Msps
(QPSK, .793 FEC, unlimited NMS)
Up to 18 Mbps
(QPSK, .793 FEC)		 Up to 8 Mbps
(QPSK, .793 FEC, unlimited NMS)
Up to 17.5 Mbps
(QPSK, .793 FEC)		 Up to 5 Mbps
(QPSK,.793 FEC, unlimited NMS)
For more information on maximum data rates please refer to the Release Notes of iDS 8.0.1
FEC
For full list please refer to the latest iDirect Link Budget Analysis Guide
Eb/N0
For full list please refer to the latest iDirect Link Budget Analysis Guide
Interfaces
TxIF Type-F, 950–1700 MHz, Composite Power +7dBm / -35dBm
RxIF Type-F, 950–1700 MHz, Composite Power -5dBm / -65dBm
TVRO Type-F, 950–1700 MHz
Available BUC Power (IFL)
+24V (supports BUCs up to 4W Ku-band or 5W C-band)
Available LNB Power (IFL)
+19.5V (Nominal)
10 MHz Reference
Software controllable on Tx and Rx IF ports
Data Interfaces
LAN Single 10/100 Ethernet, 802.1q VLAN
RS-232 RJ45 (for GPS or Console Connection or Antenna Pointing)
Protocols Supported
TCP, UDP, ACL, ICMP, IGMP, RIP Ver2, BGP, Static Routes, NAT, DHCP, DHCP Helper, Local DNS Caching, cRTP and GRE
Traffic Engineering
Group QoS, QoS (Priority Queuing and CBWFQ), Strict Priority Queuing, Application Based QoS, Minimum CIR, CIR (Static and Dynamic), Rate Limiting
Other Features
Built-in Automatic Uplink Power, Frequency and Timing Control, Authentication, Antenna Control Interface (OpenAMIP)
Mechanical / Environmental
Size W 11.5 in x D9.5 in x H2 in.
(W 29.2 cm x D24.1 cm x H5.1cm)
Operating Temperature 0˚ to +50˚C (32˚ to +122˚F) at Sea Level with temperature gradient of 5˚C per 10mins
0˚ to +45˚C (32˚ to +113˚F) at 10000 feet (3048m) with temperature gradient of 5˚C per 10mins
Humidity Max 90% non-condensing humidity
Input Voltage 100–240 VAC Single Phase, 50–60 Hz, 2A max at 90 VAC, 1A max at 240 VAC
Radio Standards EN 301-428 v1.3.1 — Ku-Band System Level Specifications
EN 301-443 v1.3.1 — C-band System Level Specifications
Safety Standards Complies with IEC 60950, EN 60950-1, UL 60950-1, CSA C22.2 No.60950-1-03
Emission Standard Complies with EN 55022 Class B, FCC Part 15 Class B, CISPR 22 Class B, EN 61000-3-2, EN 61000-3-3
EMC/Immunity Standard Complies with EN 55024, EN 301-489-1, EN 301-489-12, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
Certification FCC, CE and RoHS compliant
